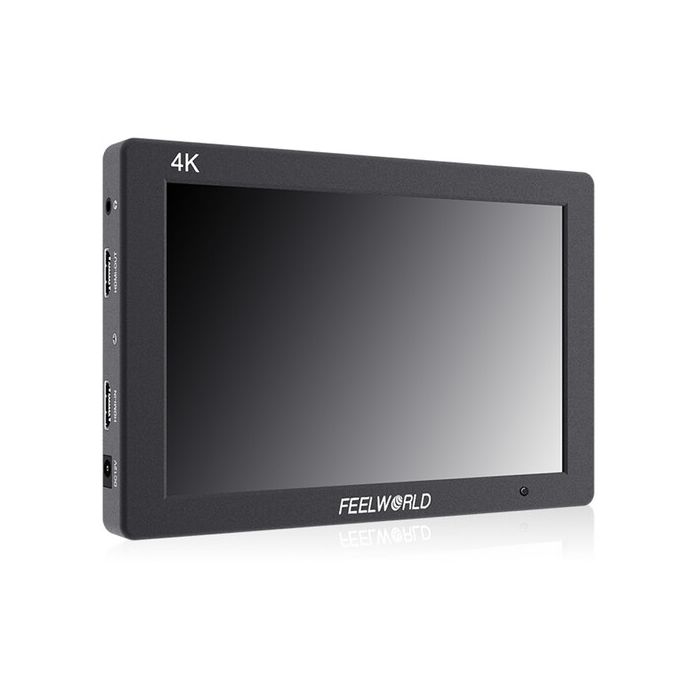

FeelWorld T7 Plus 4K monitor
by FeelWorld7" 1920 x 1200 Display
4K HDMI In and Out
Wide 160° Viewing Angle
1200:1 Contrast, 450 cd/m² Brightness
Built-In Waveform Monitoring
Mini Hot Shoe Mount
Two 1/4"-20 Threads
F970 Battery Plate
Included Sunshade
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- FeelWorld T7 Plus 7" IPS On-Camera Monitor with 3D LUT, Waveform & Vectorscope
- Micro-HDMI Cable
- Sunshade
- Mini Hot Shoe Mount
- USB Adapter Cable
- F970 Battery Plate
- Allen Key
Upgrade your on-camera viewing experience while shooting in the field to a Full HD monitor with the lightweight FeelWorld T7 Plus, a lightweight 7" IPS monitor outfitted with simultaneous vectorscope, histogram, and both audio phase and level monitoring. The T7 Plus supports 4K HDMI in and out, and it uses Rec. 709 color standard with color calibration for accurate color reproduction and vivid image viewing. The 1/4"-20 threads on the top and bottom of the monitor allow you to mount it on the included mini hot shoe mount adapter and secure it to the top of your camera.
The monitor boasts 1200:1 contrast and 450 cd/m² brightness, as well as an F970 battery plate on the back panel. The operating system of the T7 Plus includes tools for framing, focus, and exposure such as image flip, zoom, and anamorphic modes. Up to 32 custom 3D LUTs can be loaded into the interface using the USB adapter for intuitive color calibration. Further customization can be achieved by programming the onboard button controls as shortcuts to these various modes for adaptability on location.
Key Features
- Ultrathin 18mm thickness
- Full HD 1920 x 1200 resolution
- 323 ppi pixel density prevents the eye from defining individual pixels
- Durable, lightweight aluminum alloy housing
- 160° viewing angle ensures clear image as operator shifts position
- Easy button-based operation with custom shortcut keys
- Mini hot shoe adapter with adjustable 180° viewing angle and 360° rotation at the base
- Sunshade for increased visibility outdoors
Custom 3D LUTs
Import up to 32 files by connecting with USB adapter cable and interface
Waveform Monitoring
- Choose from RGB, YUV, and Y parade
- Vectorscope, histogram, audio, and level displays
- Shows all technical aspects of video and audio at once while monitoring visual
- Functions can be opened separately or all together
Video Assist Functions
- Anamorphic mode (1.3x, 2.0x, 2.0x mag, user-defined adjustment: 1.20X~2.00X)
- Center marker
- Check field (red/green/blue/mono)
- Color temperature
- False color
- Histogram (RGB1, Y, RGB2)
- Image flip
- Image freeze
- Nine grid
- Peaking focus assist (color switch capabilities)
- Pixel to pixel
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Scan mode (under, over)
- Waveform (RGB, Y, YUV)
- Zebra
- Zoom (4x, 9x, 16x)
Panel Type | IPS-Type LCD |
Display Size | 7.0" / 17.8 cm |
Resolution | 1920 x 1200 |
Aspect Ratio | 16:10 |
Viewing Angle | Horizontal: 80° Vertical: 80° |
Touchscreen | No |
Maximum Brightness | 450 cd/m2 |
Contrast Ratio | 1200:1 |
HDR Compatibility | None |
Pixels Per Inch (ppi) | 323 ppi |
Real-Time LUT Monitoring | None |
Image Controls | Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Assist, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra |
Video | 1 x HDMI Type A Input 1 x HDMI Type A Output |
Audio | 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | 1 |
Power | 1 x Barrel Input |
Other I/O | None |
Media/Memory Card Slot | None |
Wi-Fi | None |
Video Format | HDMI UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 480i 576i 480p 576p |
DC Input Power | 7 to 24 VDC |
Battery Type | 1 x Gold Mount |
Power Consumption | 8 W |
Mounting | 2 x 1/4"-20 Female |
Operating Temperature | -4 to 131°F / -20 to 55°C |
Storage Temperature | -22 to 149°F / -30 to 65°C |
Material of Construction | Aluminum |
Dimensions | 7.1 x 4.7 x 0.7" / 180 x 120 x 18 mm |
Weight | 11.3 oz / 320 g, Excluding Battery Plate 12.3 oz / 350 g, Including Battery Plate |
