Hollyland Syscom 421 2RX+1TX

Dostupnost: Isporuka 7-10 dana

SKU

HO-SY421-2RX

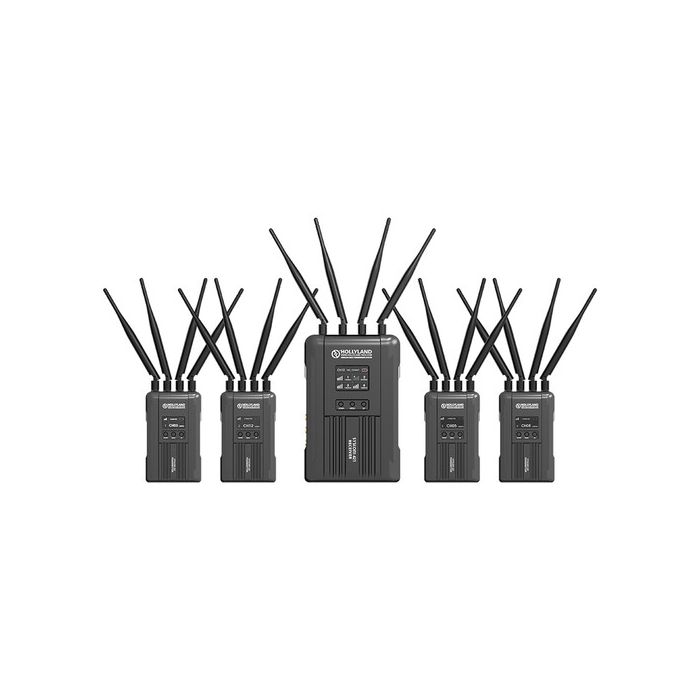

The Hollyland Syscom 421 1800' Wireless Video & Audio Transmission System is a multi-cam wireless video transmission system that communicates with up to four cameras using a single receiver with PTZ control as well as tally.

4.526,00 € 3.620,80 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

Hollyland Syscom 421 1800' Wireless Video & Audio Transmission System
4 x Transmitter
Receiver
25 x 5 GHz Antenna
4 x 7" Magic Arm
OTG Cable
4 x DC Conversion Cable
5 x RS485/RS422 Interface Cable
Power Adapter
Limited 1-Year Warranty

Opis

Supporting up to 1080p60 video signals via SDI and HDMI, the transmitter/receiver system offers an 1800' line-of-sight transmission range with 0.07 second latency.

The receiver features 4 x SDI/HDMI outputs (one for each transmitter) for connecting to a monitor or switcher. You can also connect the receiver to a LAN, allowing you to pass control signals from a control panel to the transmitters.

This enables you to control PTZ cameras as well as send tally information. The transmitters have a dedicated tally output port. Both units also have an OLED display that confirms the resolution, transmission channel, signal strength, and other details such as battery power.

The transmitters each have a built-in L-series battery plate, and the receiver has a V-mount battery plate. Both Transmitter and receiver feature a 2-pin power input for extended run times.

Key Features

Up to 1080p60 transmitter/receiver system
1800' line-of-sight transmission
SDI and HDMI input
SDI and HDMI output
Passes control and tally
OLED display

Specifikacije

Wireless Range 1800' / 548.64 m (Line-of-Sight)
Channel Bandwidth 40 MHz
Frequency Range US: 5.1 to 5.9 GHz
Latency < 0.07 sec
RF Power ≤ 22 dBm
RF Sensitivity -90 dBm

Transmitter Antenna Ports 4 x RP-SMA Male
Receiver Antenna Ports 4 x RP-SMA Male
Transmitter Video Connectors

1 x BNC (3G-SDI / HD-SDI) Input
1 x HDMI Input

Receiver Video Connectors

4 x BNC (3G-SDI) Output
4 x HDMI Output

Transmitter Other I/O

1 x USB Type-C
1 x RJ45 10/100/1000 Ethernet, RS-422, RS-485
1 x 3.5 mm Tally Output

Receiver Other I/O

1 x USB Type-C
1 x RJ45 10/100/1000 Ethernet, RS-422, RS-485

HDCP Support None

Embedded Audio

SDI
HDMI

Broadcast System Compatibility NTSC, PAL

Video Format SDI/BNC:

1080p at 23.98, 24, 25, 30, 50, 60 fps
1080i at 50, 60 fps
720p at 50, 60 fps

HDMI:
1080p at 24, 25, 30, 50, 60 fps
1080i at 50, 60 fps
720p at 50, 60 fps
576p at 50 fps
480p at 60 fps

Display:
Transmitter Panel Type OLED
Receiver Panel Type OLED

Transmitter Built-In Battery None
Receiver Built-In Battery None
Transmitter Battery Support 1 x Sony L-Series / NP-F Type
Receiver Battery Support 1 x V-Mount
Transmitter Power Connector 1 x 2-Pin LEMO (7 to 36 VDC) Input
Receiver Power Connector 1 x 2-Pin LEMO (18 to 36 VDC) Input
Transmitter Power Consumption Device: (12 W)
Receiver Power Consumption Device: (32 W)

Transmitter Mounting 1 x 1/4"-20 Female
Receiver Mounting 1 x 1/4"-20 Female
Memory Card Slot Not Specified by Manufacturer
Transmitter Dimensions 5.67 x 3.46 x 1.18" / 144 x 88 x 30 mm (Excluding Antenna and Battery Plate)
Receiver Dimensions 9.53 x 5.83 x 2.44" / 242 x 148 x 62 mm (Excluding Antenna and Battery Plate)
Transmitter Weight 0.9 lb / 431.5 g (Excluding Antenna)
Receiver Weight 3.6 lb / 1621 g (Excluding Antenna)
