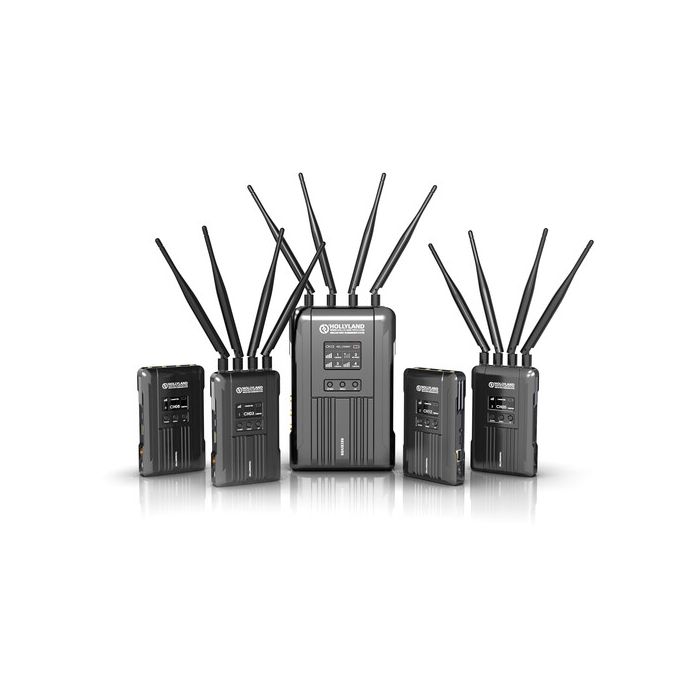

Hollyland Syscom 421 4RX+1TX
by HollylandThe Hollyland Syscom 421 1800' Wireless Video & Audio Transmission System is a multi-cam wireless video transmission system that communicates with up to four cameras using a single receiver with PTZ control as well as tally.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Hollyland Syscom 421 1800' Wireless Video & Audio Transmission System
- 4 x Transmitter
- Receiver
- 25 x 5 GHz Antenna
- 4 x 7" Magic Arm
- OTG Cable
- 4 x DC Conversion Cable
- 5 x RS485/RS422 Interface Cable
- Power Adapter
- Limited 1-Year Warranty
The Hollyland Syscom 421 1800' Wireless Video & Audio Transmission System is a multi-cam wireless video transmission system that communicates with up to four cameras using a single receiver with PTZ control as well as tally.
Supporting up to 1080p60 video signals via SDI and HDMI, the transmitter/receiver system offers an 1800' line-of-sight transmission range with 0.07 second latency.
The receiver features 4 x SDI/HDMI outputs (one for each transmitter) for connecting to a monitor or switcher. You can also connect the receiver to a LAN, allowing you to pass control signals from a control panel to the transmitters.
This enables you to control PTZ cameras as well as send tally information. The transmitters have a dedicated tally output port. Both units also have an OLED display that confirms the resolution, transmission channel, signal strength, and other details such as battery power.
The transmitters each have a built-in L-series battery plate, and the receiver has a V-mount battery plate. Both Transmitter and receiver feature a 2-pin power input for extended run times.
Key Features
- Up to 1080p60 transmitter/receiver system
- 1800' line-of-sight transmission
- SDI and HDMI input
- SDI and HDMI output
- Passes control and tally
- OLED display
Wireless Range 1800' / 548.64 m (Line-of-Sight)
Channel Bandwidth 40 MHz
Frequency Range US: 5.1 to 5.9 GHz
Latency < 0.07 sec
RF Power ≤ 22 dBm
RF Sensitivity -90 dBm
Transmitter Antenna Ports 4 x RP-SMA Male
Receiver Antenna Ports 4 x RP-SMA Male
Transmitter Video Connectors
- 1 x BNC (3G-SDI / HD-SDI) Input
- 1 x HDMI Input
Receiver Video Connectors
- 4 x BNC (3G-SDI) Output
- 4 x HDMI Output
Transmitter Other I/O
- 1 x USB Type-C
- 1 x RJ45 10/100/1000 Ethernet, RS-422, RS-485
- 1 x 3.5 mm Tally Output
Receiver Other I/O
- 1 x USB Type-C
- 1 x RJ45 10/100/1000 Ethernet, RS-422, RS-485
