- RED DSMC3 RED 5-Pin to Dual XLR Adapter
RED DSMC3 RED 5-Pin to Dual XLR Adapter
by RED
Dostupnost:
Isporuka 14-20 dana
SKU
720-0061

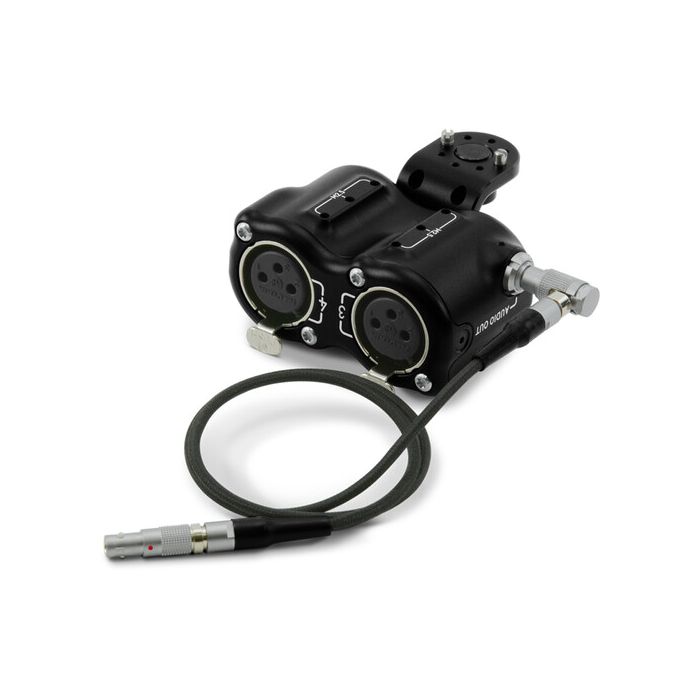

RED DIGITAL CINEMA DSMC3 5-Pin to Dual XLR 3-Pin Adapter
375,00 €
300,00 €
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- RED DIGITAL CINEMA DSMC3 5-Pin to Dual XLR 3-Pin Adapter
- Right-Angle Mounting Bracket
- 2 x 1/4"-20 Mounting Screw
Add two XLR inputs to your V-RAPTOR camera with the RED DSMC3 5-Pin to Dual XLR 3-Pin Adapter. Connect the included 5-pin ODU cable to your camera's ODU port, and the other end of the cable to the adapter's port. The adapter can provide 48V phantom power and supports both mic and line-level inputs. It mounts to the V-Raptor using a 3/8"-26 screw, and has anti-twist pins to prevent it from spinning on your camera. The unit also features 6 x M2.5 screw holes for future accessories.
Key Features
- For RED V-RAPTOR
- Line, Mic, Phantom Power
- 3/8"-16 Mounting with Anti-Twist Pins
General | |
Compatibility | RED V-RAPTOR |
Audio I/O | 2 x XLR 3-Pin Mic/Line Input |
1 x DSMC3 RED 5-Pin Mic/Line Output | |
Power | |
Power Source | Camera |
Environmental | |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 122°F / -20 to 50°C |
Physical | |
Mounting | Bottom: 1 x 3/8"-16 |
Material of Construction | Aluminum, Rubber |
Cable Length | Not Specified by Manufacturer |
Dimensions | 2.54 x 1.7 x 1.31" / 64.52 x 43.18 x 33.27 mm |
Weight | 7.9 oz / 224 g |
Packaging Info | |
Package Weight | 0.55 lb |
Box Dimensions (LxWxH) | 5.4 x 4.2 x 1.7" |
