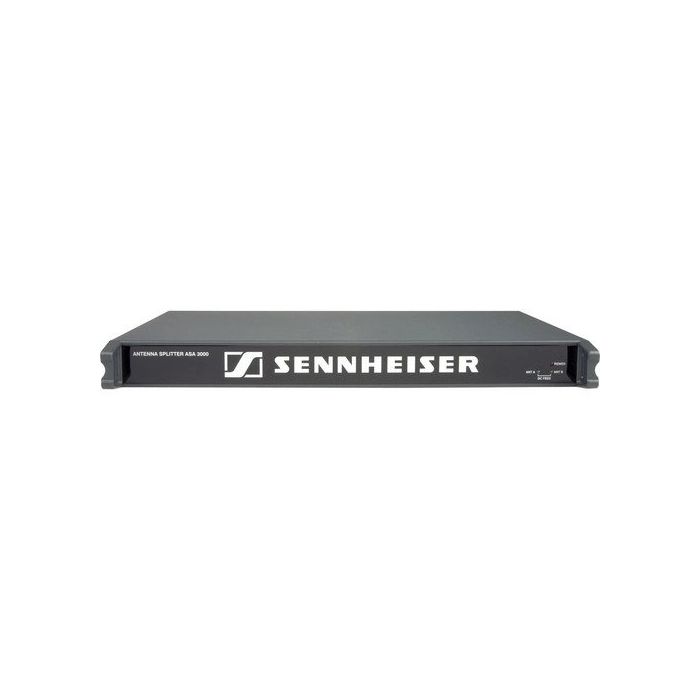

Sennheiser ASA 3000

by Sennheiser
Raspoloživost: Isporuka 14-20 dana

Active wideband antenna splitter for up to 16 channels (8 dual receivers), may be made narrowband with optional IM3000 selective RF input modules - cables not included

14.925,00 kn 11.940,00 kn

Sadržaj pakiranja

  • Sennheiser ASA 3000 2 x 1:8 Active Antenna Splitter
  • Mains Cable
  • Rack-Mounting Kit
  • Set of Self-Adhesive Plastic Feet
  • 2 x Telescopic Antenna

With the ASA 3000 2 x 1:8 Active Antenna Splitter from Sennheiser, up to 8 receivers (EM 3031) or twin receivers (EM 3032, EM 3532) can be operated with only 1 pair of diversity antennas. Each diversity section is fitted with a wideband input module, which can be exchanged for a selective input module.

Because of the built-in antenna boosters, the signals are routed without loss to the connected receivers. The active antenna splitter allows you to make receiver systems with up to 16 channels. The splitter is suited for use in multi-channel RF installations (fixed or mobile) or in permanent installations in small conference centers and venues.

RF Specification
Antenna Signal 2 x 1:8, active
Frequency Range 470 to 870 MHz
Attenuation +3 / -1 dB
Nominal Impedance Inputs/Outputs: 50 Ω
Input Connections A/B: BNC sockets
Output Connections A1-A8/B1-B8: BNC sockets
Booster At the Inputs A and B: 12 V, 70 mA maximum each, short circuit-proof
Overall System
Supply Voltage 100 to 240 VAC, 50/60 Hz, nominal
Power Consumption Maximum 8 VA
Temperature Range 14 to 131°F (-10 to +55°C)
Dimensions 19.0" (482.6 mm), 1U
Weight Approximately 6.6 lb (3.0 kg)
Packaging Info
Package Weight 11.552 lb
Box Dimensions (LxWxH) 21 x 13.1 x 6.2"
