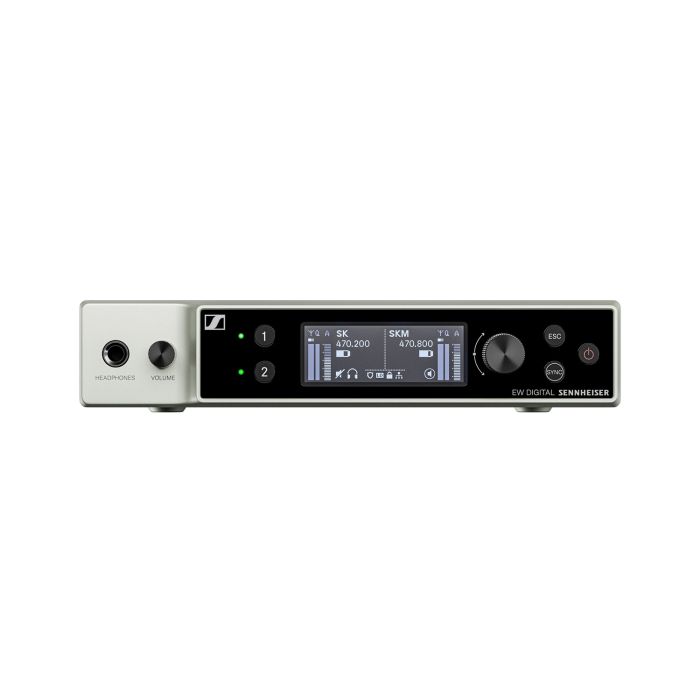

Sennheiser EW-DX EM 2 (S1-10)
by Sennheiser2 channel half rack (9.5’)
Up to 88 MHz switching bandwidth
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- EW-DX EM 2 rack receiver
- 2 rod antennas
- Power supply with country adapters
- GA 3 rackmount set
- 4 rubber feet
- Quick guide
- Safety guide
- Manufacturer declaration sheet
Two-channel digital half-rack (9,5") receiver for use with Evolution Wireless Digital handheld, bodypack and tablestand transmitters. Extended 88 MHz switching bandwidth, intermodulation-free operation for up to 293 channels with secure AES-256 encryption and redundant power supply via Power over Ethernet (PoE).
Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly. AutoScan quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely.
The NT 12-35 CS PSU with an EW-D power distribution cable can power up to 4 dual receivers.
|
Audio link frequency ranges:
|
|
Q1-9: 470.2 - 550 MHz
|
|
R1-9: 520 - 607.8 MHz
|
|
S1-10: 606.2 - 693.8 MHz
|
|
S2-10: 614.2 - 693.8 MHz
|
|
S4-10: 630 - 693.8 MHz
|
|
U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
|
|
V3-4: 925.2 - 937.3 MHz
|
|
V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
|
|
X1-6: 1350.2 - 1398.8 MHz
|
|
X9-18: 1435.2 - 1524.8 MHz
|
|
Y1-3: 1785.2 - 1799.8 MHz
|
|
Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
|
|
Audio frequency response: 20 Hz - 20 kHz (-3 dB)
|
| Audio THD: |
| ≤ -60 dB for 1 kHz |
| @ -3 dBfs input level |
|
Dynamic range: 134 dB
|
|
System latency: 1.9 ms
|
|
Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
|
|
Relative humidity: 5 - 95 % (non-condensing)
|
|
EW-DX EM 2 (Rack Receiver)
|
|
Input voltage: 11 - 13 V ⎓ or PoE IEEE 802.3af Class 0 (CAT5e or higher)
|
| Input current: ≤ 1 A |
|
Transmit power (radiated): BLE: max. 10 mW EIRP
|
|
Audio output power: 18 dBu max.
|
|
Headphone output: 2x 70 mW @ 32 Ω
|
| Ethernet: |
|
RJ-45 socket, IEEE802.3
|
|
100Base-TX (half+full duplex)
|
|
10Base-T (half+full duplex)
|
| (CAT5e or higher) |
|
Dimensions: 212 x 44 x 189 mm (8.35" x 1.73" x 7.44")
|
|
Weight: approx. 1000 g (2.2 lbs) (without antennas and power supply)
|
