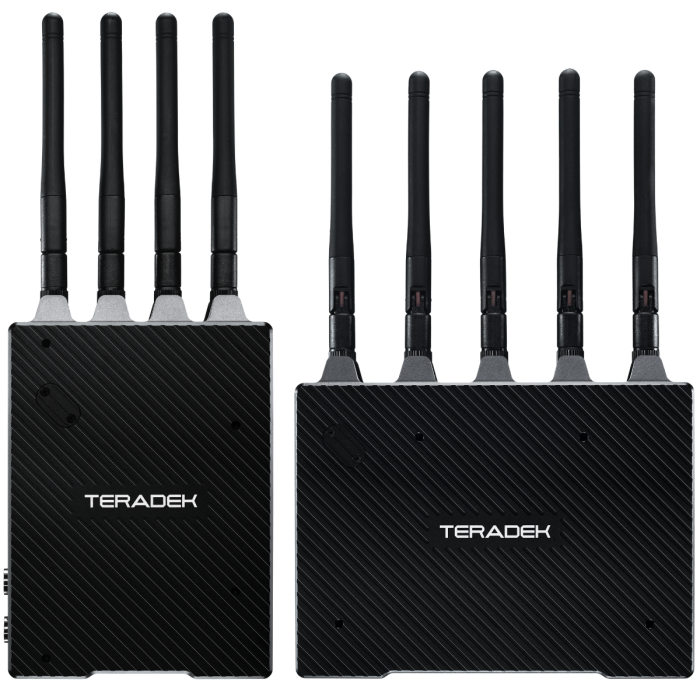

Teradek Bolt 4K LT 750 4K TX/RX
by TeradekThe Bolt 4K 750 TX/RX Set is a real-time wireless video transmission system that supports 1080p and 2160p video signals at 60FPS with less than 1ms of delay at up to 750 feet.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Teradek Bolt 4K LT 750 RX
- Teradek Bolt 4K LT 750 TX
Key features include increased range, faster reconnection times, easier setup with Bluetooth App for iOS or Android, and more stable connectivity. These devices are cross-compatible with the entire Bolt 4K Family. Includes integrated 1/4"x20 and M3 mounting points. Optional Battery Plates are sold separately.
Real-Time 4K Wireless Video
Transmit and receive uncompressed video in 1080p and 2160p at 60FPS with less than 1ms of delay. Up to 750 feet of range.
True HDR Color
Bolt 4K is compliant with the HLG, PQ, and HDR-10 standards, making it an invaluable tool on set for HDR workflows.
Rock-Solid Reliability
Bolt 4K features 8x the wireless performance of previous Bolt generations, ensuring video is delivered in even the toughest of RF environments.
Universal Compatibility
Each transmitter can send video to up to 6 receivers. Compatible with any model in the Bolt 4K line.
Inputs/Outputs
Transmitter: 1x 12G-SDI, 1x HDMI 2.0, 1x 12G-SDI looping output.
Receiver: 2x 12G-SDI, 1x HDMI 2.0
Battery Plates
Optional Gold Mount or V-Mount battery plate with pass-through power available on both TX & RX.
Camera Metadata
Send start / stop flags, timecode, and other ancillary data over the wireless link. On the receiver side, upload and apply custom 3D LUTs to monitor each take with the look you’re after.
Bolt App for iOS and Android
Remotely pair units, configure settings, and utilize all of Bolt 4K’s features from any iOS smartphone or tablet. The Bolt App uses Bolt 4K’s integrated Bluetooth to give you all of its settings in the palm of your hand.
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| # of Channels | 13 (40 MHz) 25 (20 MHz) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 17 dBm |
| Wireless Video Compression | Uncompressed |
| Transmitter Antenna Ports | 2 x RP-SMA |
| Receiver Antenna Ports | 5 x RP-SMA |
| Transmitter Video Connectors | 1 x HDMI Input 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Loop Output |
| Receiver Video Connectors | 1 x HDMI Output 1 x BNC (3G-SDI) Output |
| Transmitter Other I/O | 1 x USB Micro-B Input |
| Receiver Other I/O | 1 x USB Micro-B Input |
| Embedded Audio | SDI: 2-Channel HDMI: 2-Channel |
| Encryption | 256-Bit AES |
| Video Format | SDI/BNC: 1080p 4:2:2 YCC 10-Bit at 23.98, 24, 25, 29.97, 30, 59.94, 60 fps 1080PsF 4:2:2 YCC 10-Bit at 23.98, 24, 25, 29.97, 30 fps 1080i/720p 4:2:2 YCC 10-Bit at 50, 59.94, 60 fps 576p at 25, 50 fps 576i at 50 fps 480p at 59.94, 60 fps 480i at 59.94 fps HDMI: UHD 4K 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30 fps 1080p 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080PsF 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30 fps 1080i/720p 4:4:4 RGB 10-Bit at 50, 59.94, 60 fps 576p at 25, 50 fps 576i at 50 fps 480p at 59.94, 60 fps 480i at 59.94 fps |
| Audio Format | 2-Channel 24-Bit 48 kHz LPCM Audio |
| Timecode Support | Yes |
| Transmitter Panel Type | OLED |
| Receiver Panel Type | OLED |
| Transmitter Built-In Battery | None |
| Receiver Built-In Battery | None |
| Transmitter Power Connector | 1 x 2-Pin LEMO (6 to 28 VDC) Input |
| Receiver Power Connector | 1 x 2-Pin LEMO (6 to 28 VDC) Input |
| Transmitter Power Consumption | Device: (9 W) |
| Receiver Power Consumption | Device: (11 W) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Transmitter Mounting | 1 x 1/4"-20 Female 1 x M3 Female |
| Receiver Mounting | 1 x 1/4"-20 Female 1 x M3 Female |
| Materials | Aluminum, PCB |
| Transmitter Dimensions | 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm |
| Receiver Dimensions | 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm |
| Transmitter Weight | 7.3 oz / 206 g |
| Receiver Weight | 10.3 oz / 292 g |
| Package Weight | 18.25 lb |
| Box Dimensions (LxWxH) | 24.5 x 19.5 x 9.75" |
