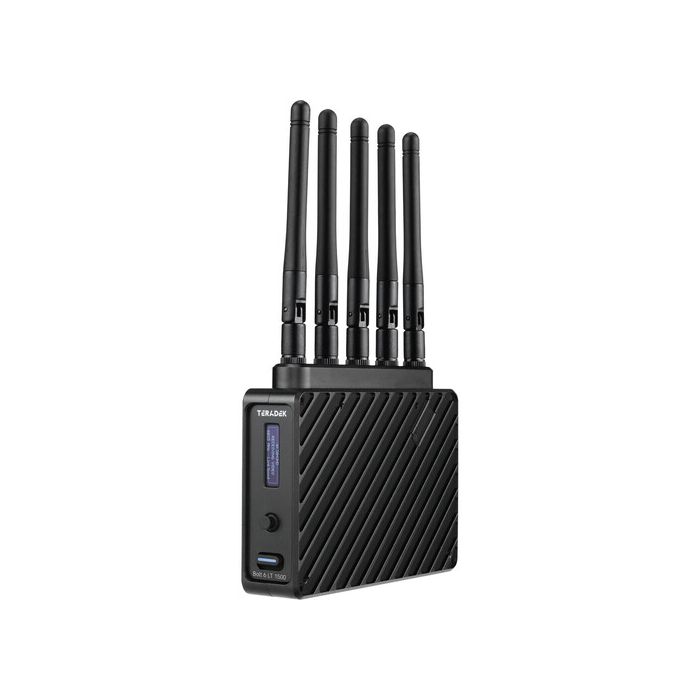

Teradek Bolt 6 LT 1500 RX

by Teradek

Dostupnost: Isporuka 14-20 dana

SKU

TRD-10-2272

Supports New 6 GHz Frequency Band
Receive Video from up to 1500' Away
SDI & HDMI Outputs, Zero Delay
Receive 4K30 Video, 10-Bit 4:2:2
Compatible with all Bolt 4K Transmitters
Bluetooth Mobile App, Spectrum Analyzer

4.154,00 € 3.323,20 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

Teradek Bolt 6 LT 1500 RX
2-Pin to D-Tap Power Cable (18")
USB Type-A to Micro-USB Type-B Cable (3')
Ultra-Thin HDMI Type A to HDMI Type A Cable (18")
BNC to BNC SDI Cable (10")
AC Adapter with Cable (6')
5 x Antenna

Opis

Receive lossless HD video from up to 1500' away along line of sight with the Bolt 6 LT 1500 RX from Teradek. The unit can wirelessly receive up to UHD 4K30 video with 10-bit HDR support, features a bright OLED display, and features HDMI and 3G-SDI outputs. With the same form factor as the Bolt 4K LT 1500, this new line supports the 6 GHz wireless band, which is now freely available.

The receiver supports transmissions of up to UHD 4K30 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers and has an improved long-range mode. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption and RSA 1024 key pairing protect your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 LT system also supports the transmission of time code and start/stop triggers.

Though it can receive visually lossless video from any Bolt 4K series transmitter with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The receiver also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your receiver on a variety of monitors or rigs.

Key Features
Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum
Wirelessly receive up to UHD 4K30 video and output up to UHD 4K30 via an HDMI or up to 1080p60 via 3G-SDI
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long range" mode
Small and light chassis design
The receiver features five antennas
AES-256 encryption and RSA 1024 key pairing support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration

Specifikacije

Antenna Ports	5 x RP-SMA Female
Video I/O	1 x HDMI 1.4b Output
	1 x BNC (3G-SDI) Output
Embedded Audio	HDMI: 2-Channel
	SDI: 2-Channel
Audio I/O	None
Power I/O	1 x LEMO 2-Pin (28 VDC) Input
Other I/O	1 x Micro-USB Input
Encryption	256-Bit AES
Wireless
Wireless Range	1500' / 457.2 m (Line-of-Sight)
Channel Bandwidth	40 MHz, 20 MHz
Frequency Range	Non-DFS Frequencies
	US: 5.94 to 6.42 GHz
	US: 5.19 to 5.23 GHz
	US: 5.75 to 5.79 GHz
	DFS Frequencies
	US: 5.27 to 5.67 GHz
Latency	< 0.01 ms
RF Power	21 dBm
Wi-Fi	None
Bluetooth	Yes
Format Support
Video Format	HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
	UHD 4K: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	480p: 60/59.94
	576i: 60
	480i: 59.94
	SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	576i: 50
	480p: 60/59.94
	480i: 59.94
Audio Format	2-Channel 24-Bit 48 kHz
Timecode Support	Yes
Power
DC Input Power	6 to 28 VDC
Power Consumption	11 W
Mounting	1 x 1/4"-20 Female
	1 x 3/8"-16 Female
Environmental
IP Rating	None
Operating Temperature	32 to 72°F / 0 to 40°C
General
Material of Construction	Aluminum, Polycarbonate
Dimensions	4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Weight	10.3 oz / 292 g
Packaging Info
Package Weight	3.49 lb
Box Dimensions (LxWxH)	16.3 x 9 x 3.6"
