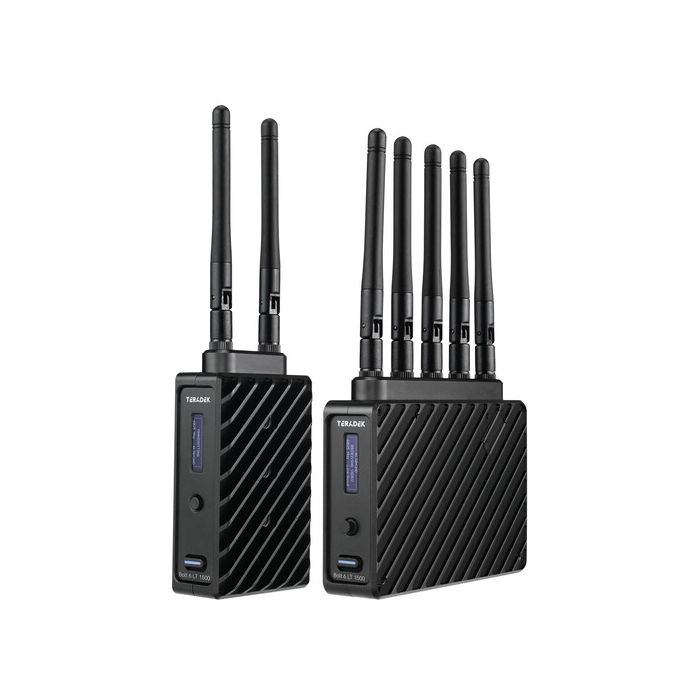

Teradek Bolt 6 LT 1500 TX/RX Deluxe Set V-Mount

by Teradek
Dostupnost: Isporuka 14-20 dana
SKU
TRD-10-2270-V

Supports New 6 GHz Frequency Band
HDMI and 3G-SDI Inputs and Outputs
V-Mount Battery Plate on RX
Transmit up to 4K30 Video
10-Bit 4:2:2 Support, No Delay
Compatible with Bolt 4K LT TX/RX Units

10.010,25 € 8.008,20 €

Sadržaj pakiranja

  • Teradek Bolt 6 LT 1500 TX/RX Deluxe Set V-Mount
  • Bolt 6 LT 1500 3G-SDI/HDMI Transmitter (V-Mount)
  • Bolt 6 LT 1500 3G-SDI/HDMI Receiver (V-Mount)
  • Antenna Array
  • 2 x Bolt Battery Cover
  • 2-Pin to D-Tap Power Cable (18")
  • Micro-USB to USB Type-A Cable (36")
  • HDMI Type A Cable (18")
  • 18W AC Adapter with Cable (6')
  • 2 x BNC Cable (10")
  • 5 x RP-SMA Female Cable (4")
  • 2-Pin Connector Cable for ALEXA (18")
  • 1/4"-20 Light Stand Adapter
  • Shoe Adapter
  • Wooden Camera Offset Mount
  • Carry Case

Transmit and receive lossless HD video from up to 1500' line of sight with the Bolt 6 LT 1500 TX/RX Deluxe Set V-Mount from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support. The transmitter inputs up to UHD 4K30 video over HDMI or up to 1080p60 video via 3G-SDI, and the receiver outputs video via HDMI and 3G-SDI. A V-mount battery plate is included to power the receiver with a professional V-mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

The transmitter sends up to 4K30 video to any Bolt 6 or 4K series receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 LT units are all cross-compatible, so you can transmit to different Bolt 6 or 4K series receiver models. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.

The system also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, both providing a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20, 3/8"-16, and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs. The Deluxe Kit features a carry case for the entire system, as well as additional cables and mounting options.

Key Features

Transmitter/receiver set cross-compatible with all Bolt 6 series over 6 GHz spectrum and Bolt 4K series devices over 5 GHz signal spectrum
The receiver features a V-mount battery plate
Transmitter input up to 4K via HDMI video; input 1080p via 3G-SDI, and transmit up to 4K30 video
Transmit video over the 6 GHz frequency band
Improved "long-range" mode
SDI Eye Pattern Tool to check SDI cable integrity
Receiver supports up to 4K30 video and outputs 1080p via 3G-SDI and 4K via HDMI
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Smaller and lighter chassis design than other Bolt transmitters
Transmit to up to six Bolt 6 or six Bolt 4K series receivers
AES-256 encryption support and RSA 1024 key pairing support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration

Antenna Ports Transmitter: 2 x RP-SMA Female
  Receiver: 5 x RP-SMA Female
Video I/O Transmitter: 1 x HDMI Input
  Transmitter: 1 x BNC (3G-SDI) Input
  Receiver: 1 x HDMI Output
  Receiver: 1 x BNC Output
Embedded Audio SDI: 2-Channel
  HDMI: 2-Channel
Audio I/O None
Power Transmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/O Transmitter/Receiver: 1 x Micro-USB Input
Encryption 256-Bit AES
Wireless
Wireless Range 1500' / 457.2 m (Line-of-Sight)
# of Channels 13 (40 MHz)
  25 (20 MHz)
Channel Bandwidth 40 MHz, 20 MHz
Frequency Range Non-DFS Frequencies
  US: 5.94 to 6.42 GHz
  US: 5.19 to 5.23 GHz
  US: 5.75 to 5.79 GHz
  DFS Frequencies
  US: 5.27 to 5.67 GHz
Latency < 0.01 ms
RF Power 23 dBm
Wi-Fi None
Bluetooth Yes
Format Support
Video Format HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
  UHD 4K: 30/29.97/25/24/23.98
  1080p: 60/59.94/50/30/29.97/25/24/23.98
  1080PsF: 30/29.97/25/24/23.98
  1080i: 60/59.94/50
  720p: 60/59.94/50
  576p: 50
  576i: 50
  480p: 60/59.94
  480i: 59.94
  SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
  1080p: 60/59.94/50/30/29.97/25/24/23.98
  1080i: 60/59.94/50
  720p: 60/59.94/50
  576p: 50
  576i: 50
  480p: 59.94/50
  480i: 59.94
Audio Format 2-Channel 24-Bit 48 kHz LPCM Audio
Wireless Video Compression Uncompressed
Timecode Support Yes
Power
DC Input Power 28 VDC
Battery Type Receiver: 1 x V-Mount
Power Consumption Transmitter: 9 W
  Receiver: 11 W
Mounting 1 x 1/4"-20 Female
  1 x 3/8"-16 Female
Environmental
IP Rating None
Operating Temperature 32 to 72°F / 0 to 40°C
General
Material of Construction Aluminum, Polycarbonate
Dimensions Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
  Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Weight Transmitter: 7.3 oz / 206 g
  Receiver: 10.3 oz / 292 g
Packaging Info
Package Weight 21.845 lb
Box Dimensions (LxWxH) 24.4 x 19.5 x 9.8"
