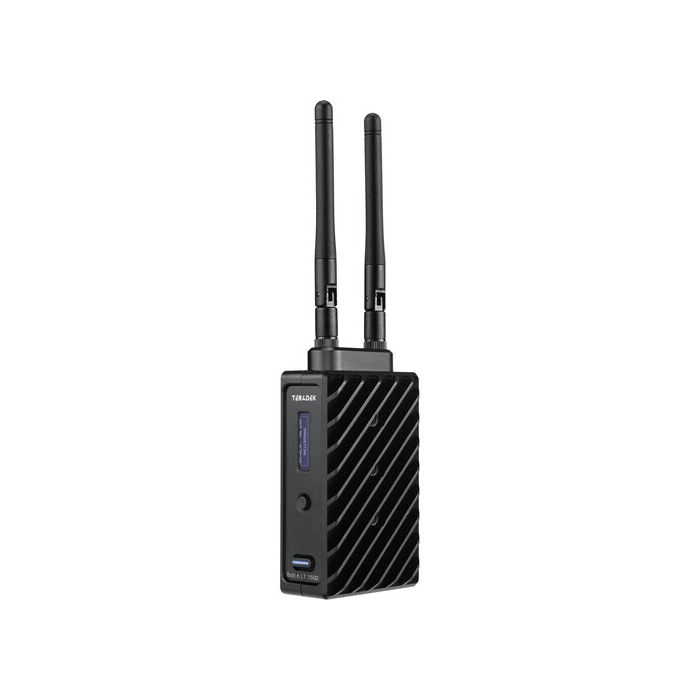

Teradek Bolt 6 LT 1500 TX
by TeradekSupports New 6 GHz Frequency Band
Transmit Video up to 1500' Line of Sight
3G-SDI and HDMI Input, SDI Output
Transmit to up to 6 x RXs
UHD 4K30 10-Bit 4:2:2 HDR Support
Compatible with all Bolt 4K 5G Devices
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Teradek Bolt 6 LT 1500 TX
- 2-Pin to D-Tap Power Cable (18")
- USB 2.0 Type-A Male to Micro-USB Male Cable (39")
- HDMI Type A Male to HDMI Type A Male Cable (18")
- BNC to BNC SDI Cable (10")
- AC Adapter with Cable (6')
- 2 x Antenna
Transmit lossless HD video up to 1500' with the Bolt 6 LT 1500 TX from Teradek. With the same form factor as the Bolt 4K LT 1500, this transmitter can input video over HDMI or 3G-SDI with 10-bit HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. The transmitter unit provides a powerful signal that can travel up to 1500' line of sight. It also features a bright OLED display and an SDI loop output.
The transmitter supports transmission of up to UHD 4K30 video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.
Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.
Key Features
Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
Input up to UHD 4K30 video via HDMI and up to 1080p60 3G-SDI; transmit up to 4K30 video; 3G-SDI loop output
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long range" mode
Small and light chassis design
Transmit to up to six Bolt 4K or Bolt 6 series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
Antenna Ports | 2 x RP-SMA Female |
Video I/O | 1 x HDMI 1.4b Input |
1 x BNC (3G-SDI) Input | |
1 x BNC (3G-SDI) Loop Output | |
Embedded Audio | HDMI: 2-Channel |
SDI: 2-Channel | |
Audio I/O | None |
Power I/O | 1 x LEMO 2-Pin (28 VDC) Input |
Other I/O | 1 x Micro-USB Input |
Encryption | 256-Bit AES |
Wireless | |
Wireless Range | 1500' / 457.2 m (Line-of-Sight) |
Channel Bandwidth | 40 MHz, 20 MHz |
Frequency Range | Non-DFS Frequencies |
US: 5.94 to 6.42 GHz | |
US: 5.19 to 5.23 GHz | |
US: 5.75 to 5.79 GHz | |
DFS Frequencies | |
US: 5.27 to 5.67 GHz | |
Latency | < 0.01 ms |
RF Power | 23 dBm |
Wi-Fi | None |
Bluetooth | Yes |
Format Support | |
Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) |
UHD 4K: 30/29.97/25/24/23.98 | |
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080PsF: 30/29.97/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50 | |
576p: 50 | |
480p: 60/59.94 | |
576i: 60 | |
480i: 59.94 | |
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) | |
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50 | |
576p: 50 | |
576i: 50 | |
480p: 60/59.94 | |
480i: 59.94 | |
Audio Format | 2-Channel 24-Bit 48 kHz |
Timecode Support | Yes |
Power | |
DC Input Power | 6 to 28 VDC |
Power Consumption | 9 W |
Mounting | 1 x 1/4"-20 Female |
Environmental | |
IP Rating | None |
Operating Temperature | 32 to 72°F / 0 to 40°C |
General | |
Material of Construction | Aluminum, Polycarbonate |
Dimensions | 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm |
Weight | 7.3 oz / 206 g |
Packaging Info | |
Package Weight | 3.235 lb |
Box Dimensions (LxWxH) | 16.8 x 8.4 x 3.6" |
