Teradek Bolt 6 LT 750 TX/RX Deluxe Set V-Mount
by TeradekSupports New 6 GHz Frequency Band
HDMI and 3G-SDI Inputs and Outputs
Transmit up to 4K30 Video
10-Bit 4:2:2 Support, No Delay
Compatible with Bolt 4K LT TX/RX Units
Bluetooth Mobile App, Spectrum Analyzer
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Teradek Bolt 6 LT 750 TX/RX Deluxe Set V-Mount)
- Bolt 6 LT 750 3G-SDI/HDMI Transmitter
- Bolt 6 LT 750 3G-SDI/HDMI Receiver V-Mount
- 2-Pin to D-Tap Power Cable (18")
- USB 2.0 Type-A Male to Micro-USB Male Cable (39")
- 2 x HDMI Type A Male to HDMI Type A Male Cable (18")
- 2 x BNC to BNC SDI Cable (10")
- 2-Pin to 2-Pin Connector for ALEXA (18")
- AC Adapter with Cable (6')
- 7 x Antenna
- 1/4"-20 Light Stand Adapter
- Shoe Adapter
- 2 x Screw
- Wooden Camera Offset Mount
- Carry Case

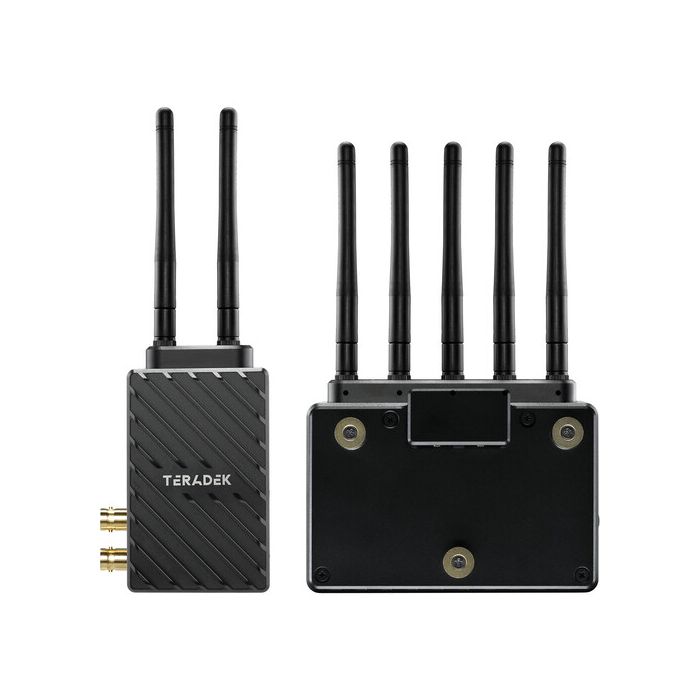

Transmit and receive lossless HD video from up to 750' line-of-sight with the Bolt 6 LT 750 TX/RX Deluxe Set V-Mount from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support. The transmitter inputs up to 4K video over HDMI or up to 1080p60 video via 3G-SDI, and the receiver outputs video via HDMI and 3G-SDI. A V-mount battery plate is included to power the receiver with a professional V-mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.
The transmitter sends up to 4K30 video to any Bolt 6 or 4K series receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 4K LT units are all cross-compatible, so you can transmit to different Bolt 6K or 4K series receiver models. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.
The system also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are multiple mounting threads to mount your transmitter on a variety of cameras, cages, or rigs. The Deluxe Kit features a carry case for the entire system as well as additional cables and mounting options.
Key Features
Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
Input video up to UHD 4K30 4K via HDMI and transmit up to 4K30 video; input up to 1080p60 via SDI; SDI loop output
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long range" mode
Small and lightweight chassis design
Transmit to up to six Bolt 4K or Bolt 6 series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
| Antenna Ports | Transmitter: 2 x RP-SMA Female |
| Receiver: 5 x RP-SMA Female | |
| Video I/O | Transmitter: 1 x HDMI 1.4b Input |
| Transmitter: 1 x BNC (3G-SDI) Input | |
| Transmitter: 1 x BNC (3G-SDI) Loop Output | |
| Receiver: 1 x HDMI 1.4b Output | |
| Receiver: 1 x BNC (3G-SDI) Output | |
| Embedded Audio | |
| SDI: 2-Channel | |
| Audio I/O | None |
| Power | Transmitter/Receiver: 1 x LEMO 2-Pin Input |
| Other I/O | Transmitter/Receiver: 1 x Micro-USB Input |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies |
| US: 5.94 to 6.42 GHz | |
| US: 5.19 to 5.23 GHz | |
| US: 5.75 to 5.79 GHz | |
| DFS Frequencies | |
| US: 5.27 to 5.67 GHz | |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Format Support | |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) |
| UHD 4K: 30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 480p: 60/59.94 | |
| 576i: 60 | |
| 480i: 59.94 | |
| SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) | |
| 1080p: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94 | |
| 480i: 59.94 | |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
| Power | |
| DC Input Power | 6 to 28 VDC |
| Battery Type | Receiver: 1 x V-Mount |
| Power Consumption | Transmitter: 9 W |
| Receiver: 11 W | |
| Mounting | 1 x 1/4"-20 Female |
| 1 x 3/8"-16 Female | |
| Environmental | |
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| General | |
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm |
| Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm | |
| Weight | Transmitter: 7.3 oz / 206 g |
| Receiver: 10.3 oz / 292 g | |
| Packaging Info | |
| Package Weight | 8.56 lb |
| Box Dimensions (LxWxH) | 14.6 x 11.7 x 7.1" |
