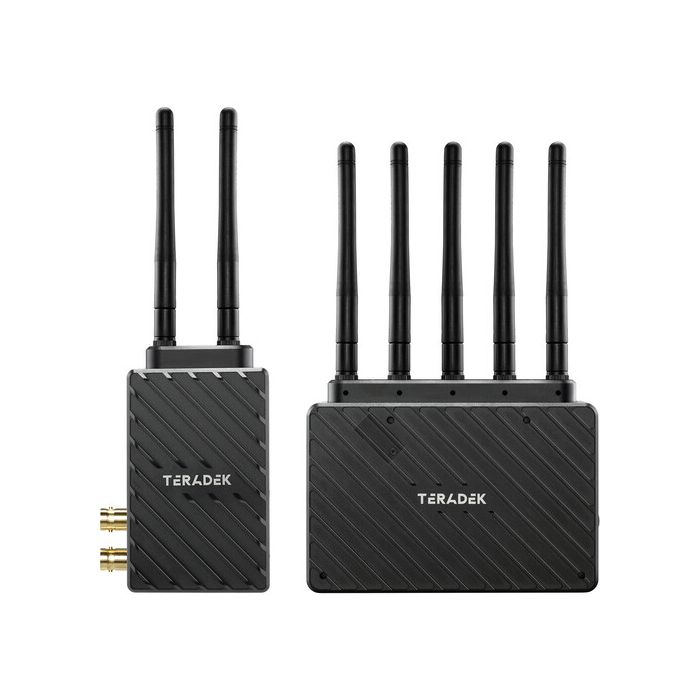

Teradek Bolt 6 LT 750 TX/RX
by Teradek3G-SDI/HDMI Transmitter & Receiver Set
Supports New 6 GHz Frequency Band
Supports up to 4K30 Resolution Input
3G-SDI/HDMI Inputs & Outputs
10-Bit 4:2:2 Support, No Delay
Compatible with Bolt 4K Series 5G TX/RX
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Teradek Bolt 6 LT 750 TX/RX
- Bolt 6 LT 750 3G-SDI/HDMI Transmitter
- Bolt 6 LT 750 3G-SDI/HDMI Receiver
- 2-Pin to D-Tap Power Cable (18")
- USB 2.0 Type-A Male to Micro-USB Male Cable (39")
- 2 x HDMI Type A Male to HDMI Type A Male Cable (18")
- 2 x BNC to BNC SDI Cable (10")
- AC Adapter with Cable (6')
- 7 x Antenna
- 1/4"-20 Light Stand Adapter
- Shoe Adapter
- Carry Case
Transmit and receive lossless HD video from up to 750' line of sight with the Bolt 6 LT 750 TX/RX from Teradek. The kit includes a wireless Bolt 6 LT 3G-SDI/HDMI transmitter and wireless Bolt 6 LT 3G-SDI/HDMI receiver that support the new 6 GHz wireless frequency and feature bright OLED displays and can wirelessly receive up to UHD 4K30 video with 10-bit 4:2:2 HDR support.
The transmitter inputs video over 3G-SDI or HDMI and features 3G-SDI and HDMI loop outputs, and the receiver outputs video via 3G-SDI and HDMI. Both units are also compatible with all Bolt 4K models using the 5 GHz wireless band. A carry case is included to store and transport the kit.
Key Features
Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
Input video up to UHD 4K30 4K via HDMI and transmit up to 4K30 video; input up to 1080p60 via SDI; SDI loop output
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long range" mode
Small and lightweight chassis design
Transmit to up to six Bolt 4K or Bolt 6 series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
| Antenna Ports | Transmitter: 2 x RP-SMA Female |
| Receiver: 5 x RP-SMA Female | |
| Video I/O | Transmitter: 1 x HDMI 1.4b Input |
| Transmitter: 1 x BNC (3G-SDI) Input | |
| Transmitter: 1 x BNC (3G-SDI) Loop Output | |
| Receiver: 1 x HDMI 1.4b Output | |
| Receiver: 1 x BNC (3G-SDI) Output | |
| Embedded Audio | |
| SDI: 2-Channel | |
| Audio I/O | None |
| Power | Transmitter/Receiver: 1 x LEMO 2-Pin Input |
| Other I/O | Transmitter/Receiver: 1 x Micro-USB Input |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies |
| US: 5.94 to 6.42 GHz | |
| US: 5.19 to 5.23 GHz | |
| US: 5.75 to 5.79 GHz | |
| DFS Frequencies | |
| US: 5.27 to 5.67 GHz | |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Format Support | |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) |
| UHD 4K: 30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 480p: 60/59.94 | |
| 576i: 60 | |
| 480i: 59.94 | |
| SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) | |
| 1080p: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94 | |
| 480i: 59.94 | |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
| Power | |
| DC Input Power | 6 to 28 VDC |
| Power Consumption | Transmitter: 9 W |
| Receiver: 11 W | |
| Mounting | 1 x 1/4"-20 Female |
| 1 x 3/8"-16 Female | |
| Environmental | |
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| General | |
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm |
| Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm | |
| Weight | Transmitter: 7.3 oz / 206 g |
| Receiver: 10.3 oz / 292 g | |
| Packaging Info | |
| Package Weight | 7.855 lb |
| Box Dimensions (LxWxH) | 13.5 x 11.7 x 7.1" |
