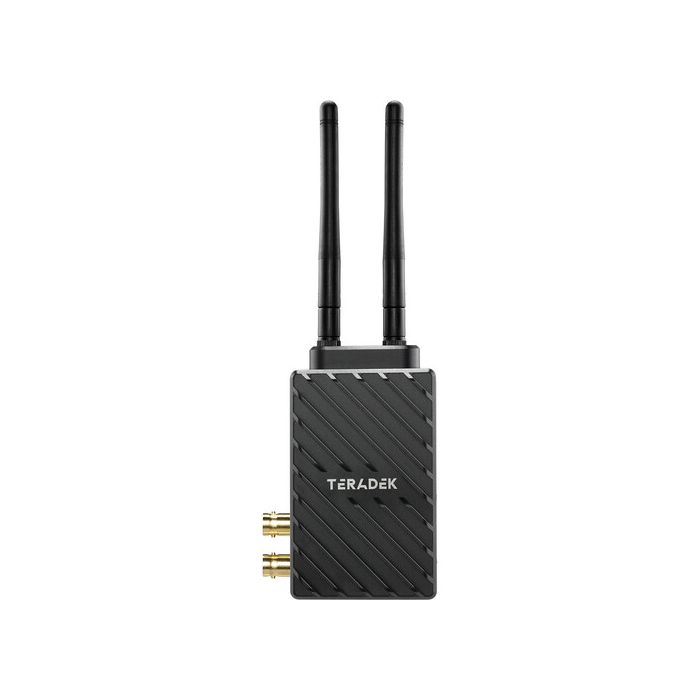

Teradek Bolt 6 LT 750 TX

by Teradek

Dostupnost: Isporuka 14-20 dana

SKU

TRD-10-2261

Supports New 6 GHz Frequency Band
3G-SDI and HDMI Input, SDI Output
Transmit to up to 6 x RXs
10-Bit 4:2:2 HDR Support
Compatible with all Bolt 4K 5G Devices
Bluetooth Mobile App, Spectrum Analyzer

2.182,25 € 1.745,80 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

2-Pin to D-Tap Power Cable (18")
USB 2.0 Type-A Male to Micro-USB Male Cable (39")
HDMI Type A Male to HDMI Type A Male Cable (18")
BNC to BNC SDI Cable (10")
AC Adapter with Cable (6')
2 x Antenna

Opis

Transmit lossless HD video up to 750' with theTeradek Bolt 6 LT 750 TX from Teradek. With the same form factor as the Bolt 4K LT 750, this transmitter can input video over HDMI or 3G-SDI with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. The transmitter unit provides a powerful signal that can travel up to 750' line of sight. It also features a bright OLED display and an SDI loop output.

The transmitter supports transmission of video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.

Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Key Features

Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
Input video up to UHD 4K30 4K via HDMI and transmit up to 4K30 video; input up to 1080p60 via SDI; SDI loop output
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long range" mode
Small and light chassis design
Transmit to up to six Bolt 4K or Bolt 6 series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration

Specifikacije

Antenna Ports	2 x RP-SMA Female
Video I/O	1 x HDMI 1.4b Input
	1 x BNC (3G-SDI) Input
	1 x BNC (3G-SDI) Loop Output
Embedded Audio	HDMI: 2-Channel
	SDI
Audio I/O	None
Power I/O	1 x LEMO 2-Pin (28 VDC) Input
Other I/O	1 x Micro-USB Input
Encryption	256-Bit AES
Wireless
Wireless Range	750' / 228.6 m (Line-of-Sight)
Channel Bandwidth	40 MHz, 20 MHz
Frequency Range	Non-DFS Frequencies
	US: 5.94 to 6.42 GHz
	US: 5.19 to 5.23 GHz
	US: 5.75 to 5.79 GHz
	DFS Frequencies
	US: 5.27 to 5.67 GHz
Latency	< 0.01 ms
RF Power	23 dBm
Wi-Fi	None
Bluetooth	Yes
Format Support
Video Format	HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
	UHD 4K: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	480p: 60/59.94
	576i: 60
	480i: 59.94
	SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	576i: 50
	480p: 60/59.94
	480i: 59.94
Audio Format	2-Channel 24-Bit 48 kHz
Timecode Support	Yes
Power
DC Input Power	6 to 28 VDC
Power Consumption	9 W
Mounting	1 x 1/4"-20 Female
Environmental
IP Rating	None
Operating Temperature	32 to 72°F / 0 to 40°C
General
Material of Construction	Aluminum
Dimensions	4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
Weight	12.1 oz / 342 g
Packaging Info
Package Weight	3.17 lb
Box Dimensions (LxWxH)	16.1 x 9 x 3.6"
Material of Construction	Aluminum, Polycarbonate
Dimensions	Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
	Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Weight	Transmitter: 7.3 oz / 206 g
	Receiver: 10.3 oz / 292 g
Packaging Info
Package Weight	8.56 lb
Box Dimensions (LxWxH)	14.6 x 11.7 x 7.1"
