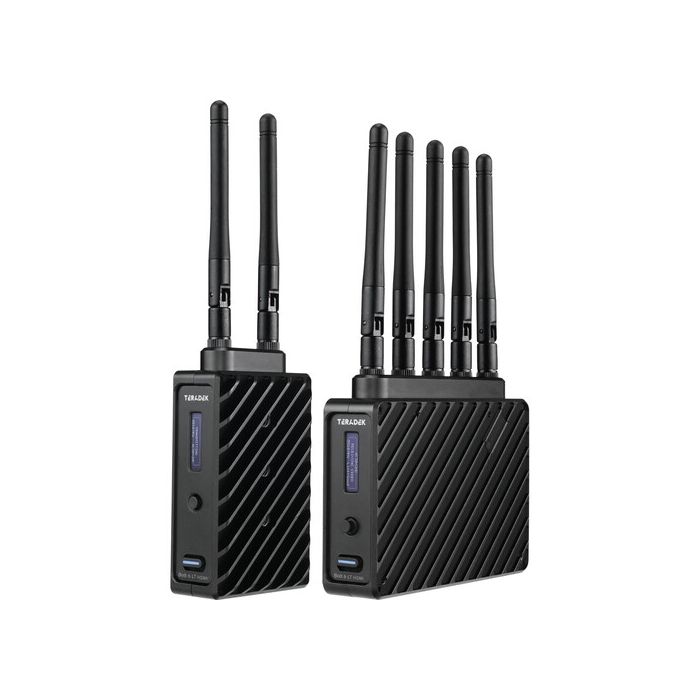

Teradek Bolt 6 LT HDMI 750 HDMI TX/RX Kit V-Mount

Teradek Bolt 6 LT HDMI 750 HDMI TX/RX Kit V-Mount

by Teradek

Dostupnost: Isporuka 14-20 dana

SKU

TRD-10-2265-V

Transmit Video up to 750' Line-of-Sight
Supports New 6 GHz Frequency Band
HDMI Inputs and Outputs
Transmit up to 4K30 Video
10-Bit 4:2:2 Support, No Delay
Compatible with all Bolt 4K Devices

2.161,50 € 1.729,20 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

Teradek Bolt 6 LT HDMI 750 HDMI TX/RX Kit V-Mount
Bolt 6 LT 750 HDMI Transmitter (V-Mount)
Bolt 6 LT 750 HDMI Receiver (V-Mount)
2 x Battery Cover
2 x 2-Pin to D-Tap Power Cable (18")
2 x USB 2.0 Type-A Male to Type-C Male Cable (39")
AC Adapter with Cable (6')
7 x Antenna
Shoe Adapter
1/4"-20 Light Stand Adapter
2 x Screw
Carry Case

Opis

Transmit and receive lossless 4K video up to 750' along line of sight with the Bolt 6 LT HDMI Wireless Transmitter/Receiver Kit from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support. This new Bolt 6 line supports the 6 GHz wireless band, which is now freely available. The Bolt 6 system is also compatible with all Bolt 4K devices using the 5 GHz wireless band.

The transmitter inputs up to 4K video over HDMI and the receiver outputs video via HDMI. A V-mount battery plate is included to power the receiver with a professional V-mount battery. A carry case is included to store and transport the kit.

Key Features

Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
Input and output up to 4K via HDMI video and transmit up to UHD 4K30 video
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long range" mode
Small and lightweight chassis design
Transmit to up to six Bolt 4K or Bolt 6 series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration

Specifikacije

Antenna Ports	Transmitter: 2 x RP-SMA Female
	Receiver: 5 x RP-SMA Female
Video I/O	Transmitter: 1 x HDMI 1.4b Input
	Transmitter: 1 x HDMI 1.4b Output
	Receiver: 1 x HDMI 1.4b Output
Embedded Audio	HDMI: 2-Channel
Audio I/O	None
Power	Transmitter/Receiver: 1 x LEMO 2-Pin (28 VDC) Input
Other I/O	Transmitter/Receiver: 1 x USB-C 2.0 Input
Encryption	256-Bit AES
Wireless
Wireless Range	750' / 228.6 m (Line-of-Sight)
Channel Bandwidth	40 MHz, 20 MHz
Frequency Range	Non-DFS Frequencies
	US: 5.92 to 6.42 GHz
	US: 5.19 to 5.23 GHz
	US: 5.75 to 5.79 GHz
	DFS Frequencies
	US: 5.27 to 5.67 GHz
Latency	< 0.01 ms
RF Power	23 dBm
Wi-Fi	None
Bluetooth	Yes
Format Support
Video Format	HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
	UHD 4K: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	480p: 60/59.94
	576i: 60
	480i: 59.94
Audio Format	2-Channel 24-Bit 48 kHz
Timecode Support	Yes
Power
DC Input Power	6 to 28 VDC
Battery Type	Transmitter/Receiver: 1 x V-Mount
Power Consumption	Transmitter: 7 W
	Receiver: 6 W
Environmental
IP Rating	None
Operating Temperature	32 to 72°F / 0 to 40°C
General
Material of Construction	Aluminum, Polycarbonate
Dimensions	Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
	Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Weight	Transmitter: 7.3 oz / 206 g, Excluding Battery Plate
	Receiver: 10.3 oz / 292 g, Excluding Battery Plate
Packaging Info
Package Weight	7.98 lb
Box Dimensions (LxWxH)	16.7 x 11.8 x 7.8"
