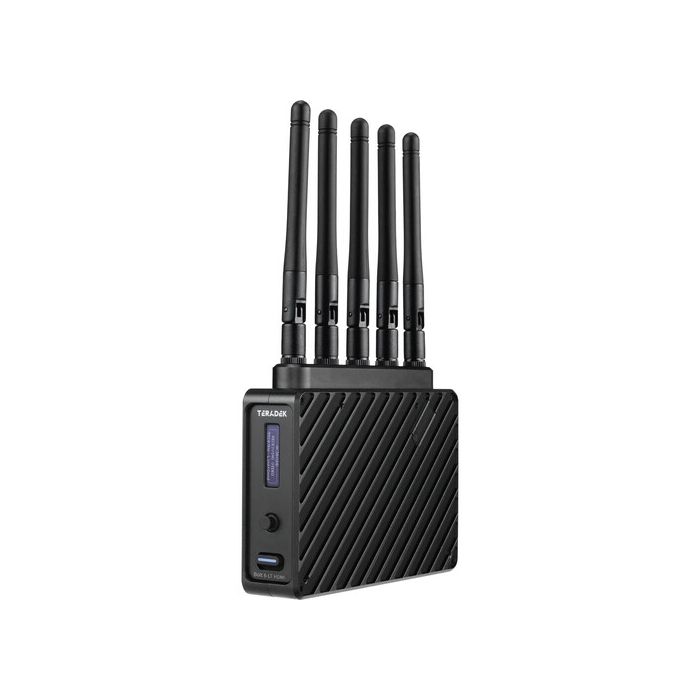

Teradek Bolt 6 LT HDMI 750 RX V-Mount

by Teradek
Dostupnost: Isporuka 14-20 dana
SKU
TRD-10-2267-V

Receive Video from up to 750'
Supports New 6 GHz Frequency Band
HDMI Output, Zero Delay
V-Mount Battery Plate
Receive 4K30 Video, 10-Bit 4:2:2
Compatible with all Bolt 4K Transmitters

1.135,25 € 908,20 €

Sadržaj pakiranja

  • Teradek Bolt 6 LT HDMI 750 RX V-Mount
  • V-Mount Battery Plate
  • 2-Pin to D-Tap Power Cable (18")
  • Ultra-Thin HDMI Type A Male to HDMI Type A Male Cable (18")
  • USB 2.0 Type-A Male to USB Type-C Male (39")
  • AC Adapter with Cable (6')
  • 5 x Antenna
  • Battery Cover
  • 2 x Screw

Receive lossless HD video from up to 750' away along line of sight with the Bolt 6 LT HDMI Wireless Receiver from Teradek. The unit can wirelessly receive up to UHD 4K30 video with 10-bit 4:2:2 HDR support, features a bright OLED display, and outputs video via an HDMI port. This new line supports the 6 GHz wireless band, which is now freely available. The receiver comes with a V-mount battery plate to power it with a high-capacity battery.

The receiver supports transmissions of up to UHD 4K30 video from a Bolt 6 series transmitter, which can simultaneously transmit to up to six receivers. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption and RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 LT system also supports the transmission of time code and start/stop triggers.

Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The receiver also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your receiver on a variety of monitors or rigs.

Key Features

Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum
Wirelessly receive up to UHD 4K30 video and output 4K via an HDMI port
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long range" mode
Small and lightweight chassis design
The receiver features five antennas
AES-256 encryption and RSA 1024 key pairing support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
Power via 2-pin input or included V-mount battery plate

Antenna Ports 5 x RP-SMA Female
Video I/O 1 x HDMI 1.4b Output
Embedded Audio HDMI: 2-Channel
Audio I/O None
Power I/O 1 x LEMO 2-Pin (28 VDC) Input
Other I/O 1 x USB-C Input
Encryption 256-Bit AES
Wireless
Wireless Range 750' / 228.6 m (Line-of-Sight)
Channel Bandwidth 40 MHz, 20 MHz
Frequency Range Non-DFS Frequencies
  5.94 to 6.42 GHz
  US: 5.19 to 5.23 GHz
  US: 5.75 to 5.79 GHz
  DFS Frequencies
  US: 5.27 to 5.67 GHz
Latency < 0.01 ms
RF Power 21 dBm
Wi-Fi None
Bluetooth Yes
App Compatible Yes: Android & iOS
  App Name: Teradek Bolt
  Functionality: Adjust Settings, Firmware Update, Setup
Format Support
Video Format HDMI
  UHD 4K: 30/29.97/25/24/23.98
  1080p: 60/59.94/50/30/29.97/25/24/23.98
  1080PsF: 30/29.97/25/24/23.98
  1080i: 60/59.94/50
  720p: 60/59.94/50
  576p: 50
  480p: 60/59.94
  576i: 60
  480i: 59.94
Audio Format 2-Channel 24-Bit 48 kHz
Timecode Support Yes
Power
DC Input Power 6 to 28 VDC
Battery Type 1 x V-Mount (Interchangeable Mount)
Power Consumption 6 W
Mounting
Mounting 1 x 1/4"-20 Female
  1 x 3/8"-16 Female
Environmental
IP Rating None
Operating Temperature 32 to 104°F / 0 to 40°C
General
Material of Construction Aluminum, Polycarbonate
Dimensions 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm, Excluding Battery Plate
Weight 10.3 oz / 292 g, Excluding Battery Plate
Packaging Info
Package Weight 3.645 lb
Box Dimensions (LxWxH) 16.7 x 8.4 x 3.7"
