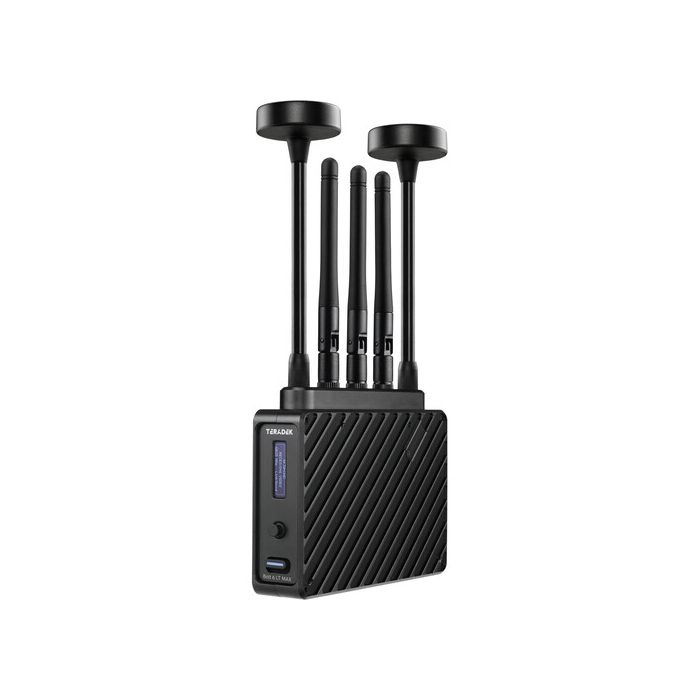

Teradek Bolt 6 LT MAX RX V-Mount
by TeradekSupports New 6 GHz Frequency Band
Receive Video from up to 5000'
HDMI and 3G-SDI Outputs, Zero Delay
V-Mount Battery Plate
Receive up to 4K30 Video, 10-Bit 4:2:2
Also Compatible with Bolt 4K 5G Devices
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Teradek Bolt 6 LT MAX RX V-Mount
- V-Mount Battery Plate
- 2-Pin to D-Tap Power Cable (18")
- USB Type-A to Micro-USB Type-B Cable (3')
- Ultrathin HDMI Type A Cable (18")
- BNC SDI Cable (10")
- AC Adapter with Cable (6')
- 3 x Standard Antenna
- 2 x Mushroom Antenna
- Battery Cover
- 2 x Screw
Receive lossless HD video from up to 5000' line of sight with the Bolt 6 LT MAX 3G-SDI/HDMI Wireless Receiver from Teradek. The unit can wirelessly receive up to UHD 4K30 video with 10-bit 4:2:2 HDR support, and this new Bolt 6 line supports the 6 GHz wireless band, which is now freely available. The receiver features a bright OLED display and outputs up to UHD 4K30 video via HDMI and up to 1080p30 via 3G-SDI. A V-mount battery plate is included to power the receiver using a separately available high-capacity V-mount battery.
The receiver supports transmissions of up to 4K30 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers. Other features include HDMI/SDI signal cross-conversion; HDR workflows that support HDR-10, PQ, and HLG standards; LUT control on outputs; and extended metadata, timecode, and start/stop trigger transmission over wireless. The built-in AES-256 encryption and RSA 1024 key pairing protect your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum.
Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The receiver also supports the desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and 3/8"-16 mounting threads to mount your receiver on a variety of monitors or rigs.
Key Features
Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum
Wirelessly receive up to UHD 4K30 video and output 1080p via 3G-SDI and UHD 4K30 via HDMI
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
SDI Eye Pattern Tool to check SDI cable integrity
Improved "long-range" mode
HDR workflow support with HDR-10, PQ, and HLG standards
Smaller and lighter chassis design than other Bolt receivers
The receiver features long-range flexible H antennas
Transmit/receive metadata, timecode, and stop/start triggers over wireless connection
AES-256 encryption support
The transmitter can simultaneously send signals to up to six Bolt 6 or 4K series receivers
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
Power via the 2-pin DC input or the included V-mount battery plate
Antenna Ports | 5 x RP-SMA Female |
Video I/O | 1 x HDMI 1.4b Output |
1 x BNC (3G-SDI) Output | |
Embedded Audio | SDI: 2-Channel |
HDMI: 2-Channel | |
Audio I/O | None |
Power I/O | 1 x LEMO 2-Pin (28 VDC) Input |
Other I/O | 1 x Micro-USB Input |
Encryption | 256-Bit AES |
Wireless | |
Wireless Range | 5000' / 1524 m (Line-of-Sight) |
3000' / 914.4 m (Line-of-Sight) | |
Channel Bandwidth | 40 MHz, 20 MHz |
Frequency Range | Non-DFS Frequencies |
US: 5.94 to 6.42 GHz | |
US: 5.19 to 5.23 GHz | |
US: 5.75 to 5.79 GHz | |
DFS Frequencies | |
US: 5.27 to 5.67 GHz | |
Latency | 0.1 ms |
RF Power | 21 dBm |
Wi-Fi | None |
Bluetooth | Yes |
Format Support | |
Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) |
UHD 4K: 30/29.97/25/24/23.98 | |
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080PsF: 30/29.97/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50 | |
576p: 50 | |
480p: 60/59.94 | |
576i: 50 | |
480i: 59.94 | |
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) | |
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080PsF: 30/29.97/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50 | |
576p: 50 | |
480p: 60/59.94 | |
576i: 50 | |
480i: 59.94 | |
Video Standard Compliance | SMPTE 424M |
Audio Format | 2-Channel 24-Bit 48 kHz LPCM Audio |
Wireless Video Compression | Uncompressed |
Timecode Support | Yes |
Power | |
DC Input Power | 6 to 28 VDC |
Battery Type | 1 x V-Mount |
Power Consumption | 11 W |
Mounting | 1 x 1/4"-20 Female |
1 x 3/8"-16 Female | |
Environmental | |
IP Rating | None |
Operating Temperature | 32 to 72°F / 0 to 40°C |
General | |
Material of Construction | Aluminum, Polycarbonate |
Dimensions | 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm, Excluding Battery Plate |
Weight | 10.3 oz / 292 g, Excluding Battery Plate |
Packaging Info | |
Package Weight | 4.03 lb |
Box Dimensions (LxWxH) | 16.5 x 9 x 3.6" |
