Teradek Bolt 6 Monitor Module 1500 TX
by TeradekWirelessly Send Video & Camera Control
Mounts onto Cine 7, Indie 7, 702 Touch
HDMI Input up to 4K30, 10-Bit HDR Video
Zero Delay, SmallHD PageOS 5 Software
Simultaneously Send to up to 6 Receivers
Compatible with All Bolt 4K 5G Receivers
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Teradek Bolt 6 Monitor Module 1500 TX
- 2 x Antenna
- HDMI to HDMI Block Adapter
- 1/4"-20 Light Stand Adapter
- Hex Wrench Set
- Screw Socket Head Set

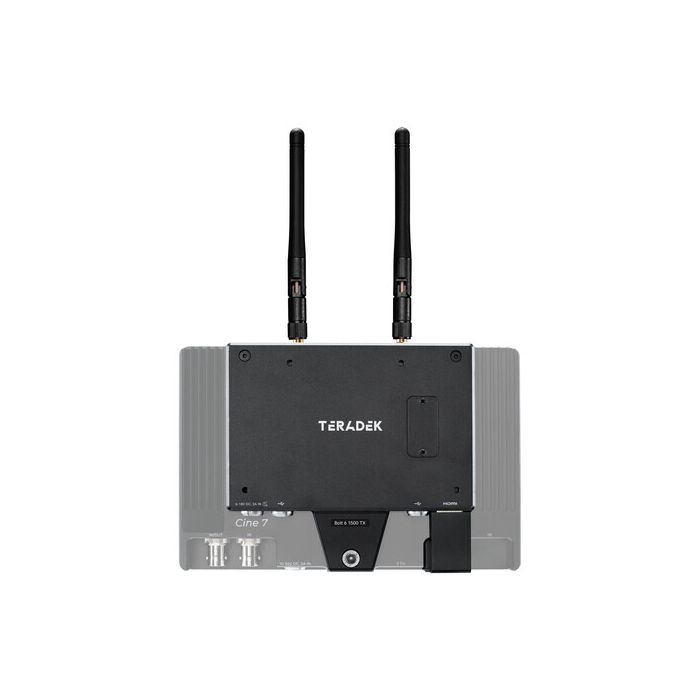

Wirelessly transmit up to 4K video and wirelessly control your cinema camera from a touchscreen monitor from up to 1500' away with the Bolt 6 Monitor Module 1500 TX from Teradek. The transmitter module mounts onto the back of a SmallHD Cine 7, Indie 7, 702 Touch monitor and can wirelessly transmit up to UHD 4K30 HDR video to any Bolt 4K receiver. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.
You can wirelessly control supported cameras by connecting to an optional Bolt 4K RX monitor module on a similar monitor with installed camera control software. The I/O signal connection between the two units allow you to control the camera wirelessly right from the screen of the RX module monitor, or locally from the TX module monitor, with zero delay. The receiver module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
The monitor inputs up to 4K30 video from the camera for a high-resolution preview, and can also output the video to the transmitter using its HDMI block connection with 10-bit 4:2:2 HDR support. It can simultaneously transmit to up to six receivers, and it features improved metadata, range, and compatibility over previous Bolt 4K transmitters. Built-in AES-256 encryption and RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum.
It can be powered using the 2-pin DC power input or with a separately available battery plate. It runs on PageOS 5, the same software running on the monitors, for compatibility with the SmallHD monitors. The camera control option requires a specific camera control license to be purchased separately.
Key Features
Transmits video on the newly available 6 GHz wireless frequency band
Transmit to up to six Bolt 4K or Bolt 6 series receivers
Cross-compatible with all Bolt 4K and 4K LT series receivers and the Bolt 4K RX monitor module
Mounts on the back of a SmallHD Cine 7, Indie 7, 702 Touch monitor
Compatible with ARRI cameras with separately available license and will also be available for the RED KOMODO and Sony VENICE with future license availability
Wirelessly transmit up to UHD 4K30 video
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Can coexist with Wi-Fi and 5 GHz cordless phones
Antenna Ports | 2 x RP-SMA Female |
Video I/O | 1 x HDMI 1.4b Input |
Embedded Audio | HDMI: 2-Channel |
Audio I/O | None |
Power I/O | 1 x LEMO 2-Pin (18 VDC) Input |
Other I/O | 2 x LEMO 5-Pin Output |
Encryption | 256-Bit AES |
Wireless | |
Wireless Range | 1500' / 457.2 m (Line-of-Sight) |
Channel Bandwidth | 40 MHz |
Frequency Range | Non-DFS Frequencies |
US: 5.94 to 6.42 GHz | |
US: 5.19 to 5.23 GHz | |
US: 5.75 to 5.79 GHz | |
DFS Frequencies | |
US: 5.27 to 5.67 GHz | |
Latency | 0 ms |
RF Power | 23 dBm |
Wi-Fi | None |
Bluetooth | Yes |
Format Support | |
Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB) |
UHD 4K: 30/29.97/25/24/23.98 | |
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080PsF: 30/29.97/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50 | |
576p: 50 | |
480p: 60/59.94 | |
576i: 50 | |
480i: 59.94 | |
Audio Format | 2-Channel 24-Bit 48 kHz LPCM Audio |
Wireless Video Compression | Uncompressed |
Timecode Support | Yes |
Power | |
DC Input Power | 6 to 18 VDC |
Power Consumption | 7 W |
Environmental | |
IP Rating | None |
Operating Temperature | 32 to 72°F / 0 to 40°C |
General | |
Material of Construction | Aluminum, Plastic |
Dimensions | 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm |
Weight | 7.3 oz / 206 g |
Packaging Info | |
Package Weight | 2.945 lb |
Box Dimensions (LxWxH) | 16.3 x 9.3 x 3.6" |
