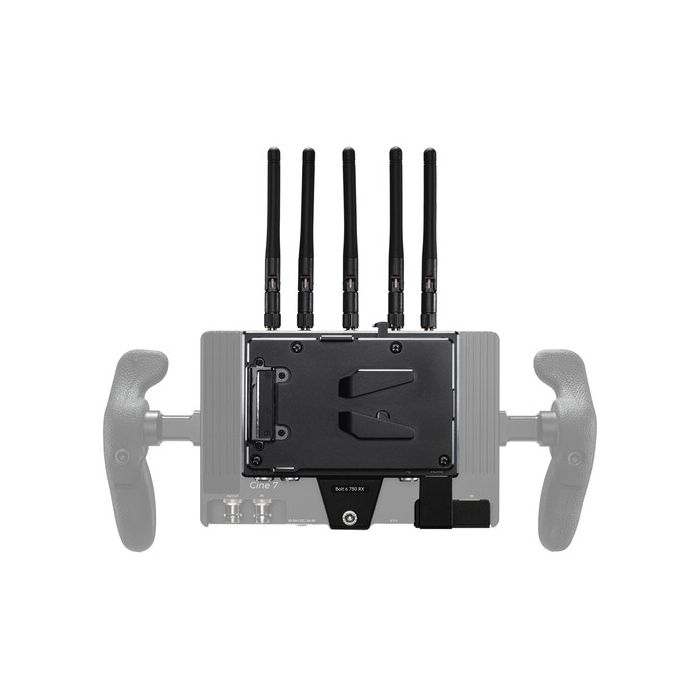

Teradek Bolt 6 Monitor Module 750 RX V Mount

by Teradek
Dostupnost: Dostupno
SKU
TRD-10-2199-V7

Supports New 6 GHz Frequency Band
V-Mount Battery Plate
For SmallHD Cine 7/Indie 7/702 Touch
Receive up to 4K30 Video, Zero Delay
Output Video up to 4K30 via HDMI
Compatible with Any Bolt 4K Transmitter

Akcija traje do 30. 04. 2024. ili do isteka zaliha!
Regularna cijena 2.525,25 € * Najniža cijena u zadnjih 30 dana Akcijska cijena 2.020,25 € 1.616,20 €
-19%

Sadržaj pakiranja

  • Teradek Bolt 6 Monitor Module 750 RX V Mount
  • V-Mount Battery Plate
  • 5 x Antenna
  • HDMI to HDMI Block Adapter
  • 1/4"-20 Light Stand Adapter
  • Hex Wrench Set
  • Screw Socket Head Set

Receive lossless HD video from up to 750' line-of-sight with the Bolt 6 RX 750 Monitor Module from Teradek. The module mounts onto the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support and outputs video via one HDMI port. A V-mount battery plate is included to power the receiver using a professional V-mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

The module can also simultaneously transmit to up to six receivers. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 system also supports the transmission of timecode and start/stop triggers from the camera.

The receiver module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

Key Features

Supports the new freely available 6 GHz wireless frequency band
Cross-compatible with all Bolt 4K and 4K LT series 5 GHz transmitters
Mounts on the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor
Wirelessly receive up to 4K30 video and output up to 4K30 via HDMI 2.0 port
V-mount battery plate included
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Smaller and lighter chassis design than other Bolt receivers
The receiver features five antennas
AES-256 encryption and RSA 1024 key pairing support
Wireless Android/iOS app via Bluetooth features a spectrum analyzer and remote configuration

Antenna Ports 5 x RP-SMA Female
Video I/O 1 x HDMI 1.4b Output
Embedded Audio HDMI: 2-Channel
Audio I/O None
Power I/O 1 x LEMO 2-Pin (18 VDC) Input
Other I/O 2 x LEMO 5-Pin 2.0 Output
Encryption 256-Bit AES
Wireless
Wireless Range 750' / 228.6 m (Line-of-Sight)
Channel Bandwidth 40 MHz
Frequency Range Non-DFS Frequencies
  US: 5.94 to 6.42 GHz
  US: 5.19 to 5.23 GHz
  US: 5.75 to 5.79 GHz
  DFS Frequencies
  US: 5.27 to 5.67 GHz
Latency < 0.01 ms
RF Power 21 dBm
Wi-Fi None
Bluetooth Yes
Format Support
Video Format HDMI/Wireless
  UHD 4K: 30/29.97/25/24/23.98
  1080p: 60/59.94/50/30/29.97/25/24/23.98
  1080i: 60/59.94/50
  720p: 60/59.94/50
  576p: 50
  576i: 50
  480p: 60/59.94
  480i: 59.94
Audio Format 2-Channel 24-Bit 48 kHz LPCM Audio
Timecode Support Yes
Power
DC Input Power 6 to 18 VDC
Battery Type 1 x V-Mount
Power Consumption 6 W
Environmental
IP Rating None
Operating Temperature 32 to 72°F / 0 to 40°C
General
Material of Construction Aluminum, Plastic
Dimensions 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Weight 10.3 oz / 292 g
Packaging Info
Package Weight 3.125 lb
Box Dimensions (LxWxH) 16.5 x 8.5 x 3.7"
