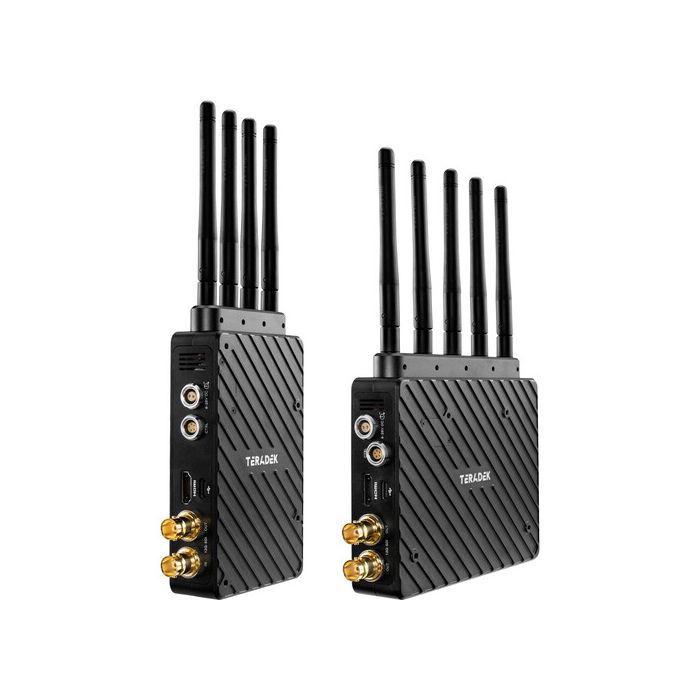

Teradek Bolt 6 XT 1500 12G-SDI/HDMI Wireless TX/RX Deluxe Set VM
by TeradekSupports New 6 GHz Frequency Band
HDMI and 12G-SDI Inputs and Outputs
Transmit up to 4K30 Video
V-Mount Battery Plate on RX
10-Bit 4:2:2 Support, No Delay
Compatible with Bolt 6/4K TX/RX Units
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Teradek Bolt 6 XT 1500 12G-SDI/HDMI Wireless TX/RX Deluxe Set VM
- Bolt 6 XT 1500 12G-SDI/HDMI Transmitter (V-Mount)
- Bolt 6 XT 1500 12G-SDI/HDMI Receiver (V-Mount)
- Antenna Array
- 2 x 2-Pin to D-Tap Power Cable (18")
- Micro-USB to USB Type-A Cable (36")
- 2 x HDMI Type A Cable (18")
- 2 x BNC Cable (18")
- 2-Pin Cable for ALEXA (18")
- 18W AC Adapter with Cable (6')
- 2 x Bolt Battery Cover (Front)
- 2 x Bolt Battery Cover (Rear)
- 5 x RP-SMA Cable (4")
- 1/4"-20 Light Stand Adapter
- Shoe Adapter
- Screw Set
- Allen Wrench
- Wooden Camera Monitor Mount
- Carry Case
- 9 x Antenna
Transmit and receive lossless HD video from up to a 1500' line of sight with the Bolt 6 XT 1500 12G-SDI/HDMI Wireless RX/TX Deluxe Kit from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K60 video with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. The transmitter inputs up to 4K video over HDMI or 12G-SDI, and the receiver outputs video via HDMI and 12G-SDI. A V-mount battery plate is included to power each unit with a professional V-mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.
The transmitter sends up to 4K60 video to any Bolt 6 or 4K series receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. Though it can transmit visually lossless video to any Bolt 6 or 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.
The transmitter module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, providing a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20, 3/8"-16, and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs. The Deluxe Kit features a carry case for the entire system as well as additional cables and mounting options.
Key Features
Transmitter/receiver set cross-compatible with all Bolt 6 series over 6 GHz spectrum and Bolt 4K series devices over 5 GHz signal spectrum
Units feature a V-mount battery plate
Input and output up to 4K video via HDMI and 12G-SDI; transmit up to 4K30 video
Transmit video over the 6 GHz frequency band
Improved "long-range" mode
SDI Eye Pattern Tool to check SDI cable integrity
The receiver supports up to 4K30 video and outputs 12G-SDI and HDMI
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Smaller and lighter chassis design than other Bolt transmitters
Transmit to up to six Bolt 6 or six Bolt 4K series receivers
AES-256 encryption support and RSA 1024 key pairing support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
| Antenna Ports | Transmitter: 4 x RP-SMA Female |
| Receiver: 5 x RP-SMA Female | |
| Video I/O | Transmitter: 1 x HDMI 2.0 Input |
| Transmitter: 1 x BNC (12G-SDI) Input | |
| Transmitter: 1 x BNC (12G-SDI) Loop Output | |
| Receiver: 1 x HDMI 2.0 Output | |
| Receiver: 1 x BNC (12G-SDI) Output | |
| Embedded Audio | SDI: 2-Channel |
| HDMI: 2-Channel | |
| Audio I/O | None |
| Power | Transmitter/Receiver: 1 x LEMO 2-Pin Input |
| Other I/O | Transmitter/Receiver: 1 x USB-C Input |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 1500' / 457.2 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies |
| US: 5.94 to 6.42 GHz | |
| US: 5.19 to 5.23 GHz | |
| US: 5.75 to 5.79 GHz | |
| DFS Frequencies | |
| US: 5.27 to 5.67 GHz | |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Format Support | |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) |
| DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94 | |
| 480i: 59.94 | |
| SDI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) | |
| DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 59.94/50 | |
| 480i: 59.94 | |
| Audio Format | 2-Channel 24-Bit 48 kHz LPCM Audio |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Power | |
| DC Input Power | 28 VDC |
| Battery Type | Receiver: 1 x V-Mount |
| Power Consumption | Transmitter: 20 W |
| Receiver: 18 W | |
| Mounting | 1 x 1/4"-20 Female |
| 1 x 3/8"-16 Female | |
| Environmental | |
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| General | |
| Material of Construction | Aluminum |
| Dimensions | Transmitter: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm |
| Receiver: 5.4 x 4.4 x 1.1" / 138 x 112 x 27 mm | |
| Weight | Transmitter: 12.1 oz / 344 g |
| Receiver: 15.2 oz / 430 g | |
| Packaging Info | |
| Package Weight | 23.505 lb |
| Box Dimensions (LxWxH) | 24.4 x 19.9 x 9.6" |
