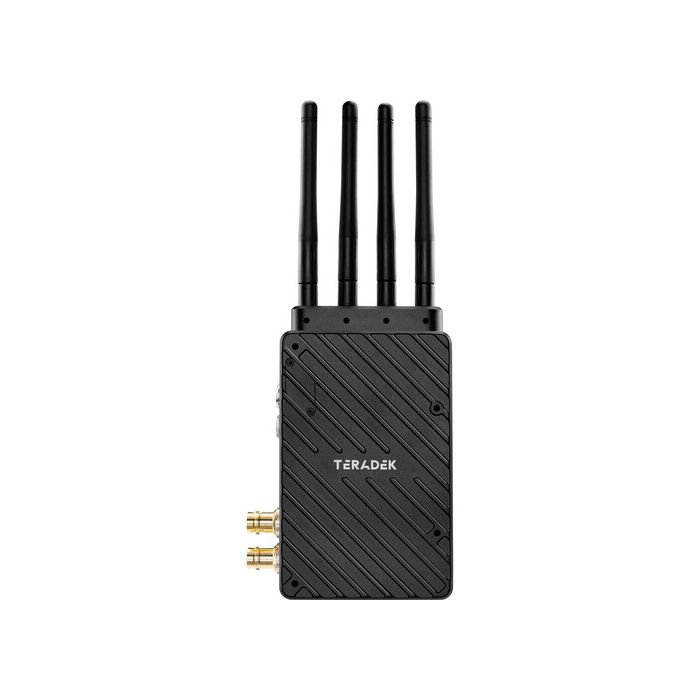

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless TX
by TeradekSupports New 6 GHz Frequency Band
Transmit Video up to 750' Line of Sight
12G-SDI and HDMI Input, 12G-SDI Output
Smaller, Lighter, 50% Quieter
Compatible with all Bolt 4K 5G Devices
Bluetooth Mobile App, Spectrum Analyzer
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless TX
- 2-Pin to D-Tap Power Cable (18")
- USB 2.0 Type-A Male to USB Type-C Male Cable (39")
- HDMI Type A Male to HDMI Type A Male Cable (18")
- BNC to BNC 12G-SDI Cable (18")
- AC Adapter with Cable (6')
- 4 x Antenna
Transmit lossless HD video up to 750' with the Bolt 6 XT 750 12G-SDI/HDMI Wireless TX Transmitter from Teradek. With a smaller and lighter form factor than the Bolt 4K model, this transmitter can input up to DCI 4K60 video over HDMI or 12G-SDI with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. It also features 50% quieter operation with its redesigned cooling system. The transmitter unit provides a powerful signal that can travel up to 750' line of sight. It features a bright OLED display, a 12G-SDI loop output, and supports camera control with optional firmware via its 5-pin USB output.
The transmitter supports transmission of video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt XT system also supports the transmission of timecode and start/stop triggers from the camera.
Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.
Key Features
Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Smaller, lighter, and 50% quieter than previous models
Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
Input via 12G-SDI and HDMI and transmit up to DCI 4K60 video; output via 12G-SDI
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long range" mode
Transmit to up to six Bolt 4K or Bolt 6 series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
Inputs / Outputs | |
Antenna Ports | 4 x RP-SMA Female |
Video I/O | 1 x HDMI 2.0 Input |
1 x BNC (12G-SDI) Input | |
1 x BNC (12G-SDI) Loop Output | |
Embedded Audio | HDMI: 2-Channel |
SDI | |
Audio I/O | None |
Power I/O | 1 x LEMO 2-Pin (28 VDC) Input |
Other I/O | 1 x USB-C Input |
1 x LEMO 5-Pin 2.0 Output | |
Encryption | 256-Bit AES |
Wireless | |
Wireless Range | 750' / 228.6 m (Line-of-Sight) |
Channel Bandwidth | 40 MHz, 20 MHz |
Frequency Range | Non-DFS Frequencies |
US: 5.94 to 6.42 GHz | |
US: 5.19 to 5.23 GHz | |
US: 5.75 to 5.79 GHz | |
DFS Frequencies | |
US: 5.27 to 5.67 GHz | |
Latency | < 0.01 ms |
RF Power | 23 dBm |
Wi-Fi | None |
Bluetooth | Yes |
Format Support | |
Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) |
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080PsF: 30/29.97/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50 | |
576p: 50 | |
480p: 60/59.94 | |
576i: 60 | |
480i: 59.94 | |
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) | |
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50 | |
576p: 50 | |
576i: 50 | |
480p: 60/59.94 | |
480i: 59.94 | |
Audio Format | 2-Channel 24-Bit 48 kHz |
Timecode Support | Yes |
Power | |
DC Input Power | 6 to 28 VDC |
Power Consumption | 20 W |
Mounting | |
Mounting | 1 x 1/4"-20 Female |
Environmental | |
IP Rating | None |
Operating Temperature | 32 to 72°F / 0 to 40°C |
General | |
Material of Construction | Aluminum, Polycarbonate |
Dimensions | 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm |
Weight | 12.1 oz / 344 g |
