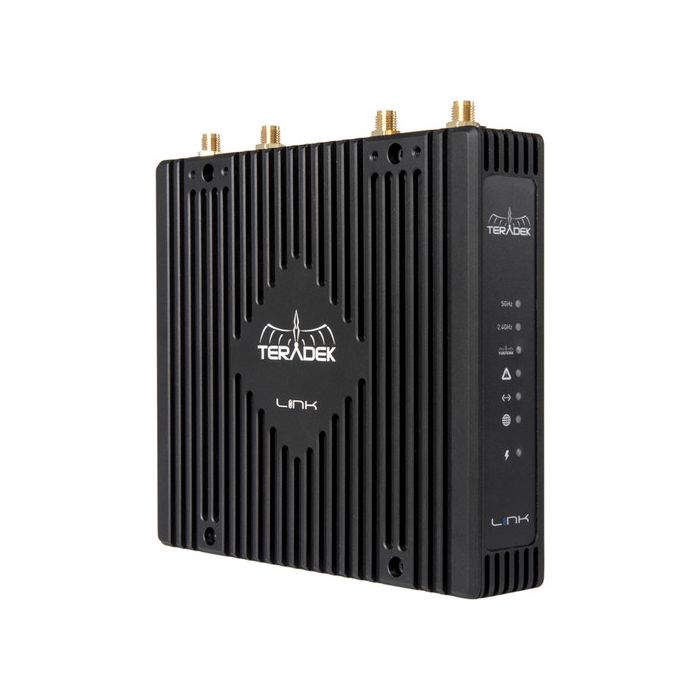

Teradek Link AB Mount Wireless Access Point Router GbE Dual Band Portable

by Teradek
Dostupnost: Isporuka 7-10 dana
SKU
10-0050-A

Dual Band 2.4/5 GHz 802.11ac Wi-Fi, 1000' Range, High Throughput with Quad Core Processor, Rugged Design

793,25 € 634,60 €

Sadržaj pakiranja

  • Teradek Link Dual-Band Wi-Fi Router (Gold Mount)
  • 4 x Wi-Fi Antennas
  • Ethernet Cable
  • D-Tap to 2-Pin Power Cable (6.5")
  • 1/4"-20 Light Stand Adapter
  • 2-Pin Cable AC Adapter (6')

Designed for connecting professional video equipment, the Teradek Link Dual-Band Wi-Fi Router is more robust than consumer routers and access points, plus it can be powered by a separately available Gold mount battery in remote locations. Teradek devices that use Wi-Fi can benefit from the greater throughput provided by the Link and its 1000' range. A light stand adapter is included for mounting versatility. A power supply, a 2-pin to D-Tap cable, and an Ethernet cable are also included.

Dual Band 2.4 / 5 GHz | 802.11ac Wi-Fi
Supports common Wi-Fi standards, such as 802.11ac, and legacy Wi-Fi 802.11a/b/g/n standards for compatibility with a wide range of devices. 1000' coverage is provided for connecting to on-set devices.
High Throughput and Interference Resistant
Link's quad core processor and significant internal memory ensure high data throughput despite numerous clients utilizing the network at once. Compared to typical consumer access points, Link offers optimized buffering and packet re-transmission, allowing you to maintain a consistent connection even in tough RF environments.
Rugged Design
Link's aluminum chassis allows it to withstand the daily abuse common in production environments or in the field. With several 1/4"-20 mounts, the device can easily be mounted onto light stands, DIT carts, or OB vans.
PoE Power
Link's passive PoE connection allows the system to be powered in line with the Teradek Sphere or any other PoE injector for a more streamlined setup on set.
Network Security
Link offers standard WiFi network protection, including WEP, WPA, and WPA2 security.
Ethernet 2 x RJ45, Gigabit Ethernet
Wi-Fi 2x2 2.4 GHz 802.11b/g/n, max 20 dBm per chain
2x2 5 GHz 802.11a/n/ac, max 16 dBm per chain
Frequency Range: 2.412-2.472 GHz, 5.180-5.825 GHz
Encryption: 802.1x, 802,11i, WPA2, WPA, and WEP 64/128 TKIP 128-bit AES
Transmission Range 1000' / 300 m
Network Protocol TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Mounting Threads 1 x 1/4"-20
2 x 4-40
Power Input 12-24 VDC
1 x 2-pin circular locking connector
24 V PoE (Power over Ethernet)
Power Consumption 19 W (max)
Environmental Operating Temperature: 14 to 122°F / -10 to 50°C
Storage Temperature: -40 to 194°F / -40 to 90°C
Operating Humidity: 5-95% (non-condensing)
Storage Humidity: 0-90%
Dimensions 5.2 x 1.1 x 5.1" / 13.3 x 28.5 x 13 cm
Weight 13.2 oz / 374 g
Packaging Info
Package Weight 14.95 lb
Box Dimensions (LxWxH) 18.0 x 13.8 x 12.6"
