Teradek Ranger 4K 12G-SDI/HDMI - Wireless TX/RX Set V-Mount
- Transmit Video up to 5000' Line-of-Sight
- HDMI and 12G-SDI Inputs and Outputs
- Transmit up to 4K60 HDR Video
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Teradek Ranger 4K 12G-SDI/HDMI Wireless TX/RX Set (V-Mount)
- Antenna Array Plate
- Ranger 4K Wireless Transmitter (V-Mount)
- Ranger 4K Wireless Receiver (V-Mount)
- 4 x Battery Slot Cover
- 1/4"-20 Light Stand Adapter
- 4 x M2 Screw
- 2-Pin to D-Tap Power Cable (18")
- Micro-USB to USB Type-A Cable (36")
- 2 x Ultra-Thin HDMI Type A Cable (18")
- 7 x RP-SMA Antenna (4")
- 2 x 12G-SDI BNC Cable (18")
- 5 x RP-SMA Cable (4")
- Carry Case XL
- AC Power Adapter with 2-Pin Cable (6')
- 3 x 2.4/5.8 GHz Wi-Fi Antenna
- 2 x Mushroom Antenna
- H N-Type Antenna
- V N-Type Antenna

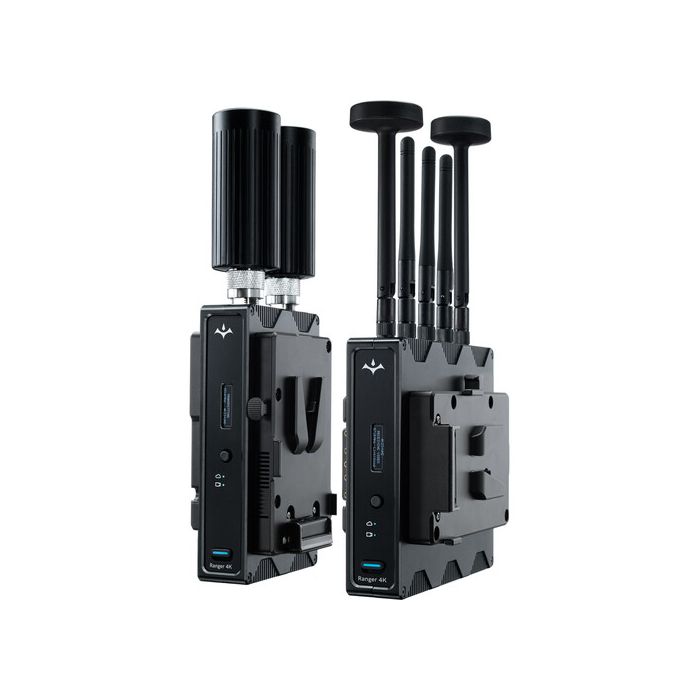

Transmit and receive lossless HD video from up to 5000' line-of-sight with the Ranger 4K 12G-SDI/HDMI Wireless TX/RX Set from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K60 HDR video with 10-bit 4:2:2 support. The transmitter inputs up to 4K video over HDMI or 12G-SDI, and the receiver outputs video via HDMI and 12G-SDI. A V-mount battery plate is included to power the each unit with a professional V-mount battery. The set can transmit lossless uncompressed video with no delay up to 3000' right out of the box, or with the included panel antenna array can transmit up to 5000' line-of-sight.
The transmitter sends up to 4K60 HDR video to the receiver using 4.9 to 6.0 GHz operating frequencies, and it can also simultaneously transmit to up to six receivers. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum.
The system also supports an Android/iOS app that easily connects via Bluetooth, which provides a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.
- Transmitter/receiver set can transmit uncompressed, zero-delay video up to 4K60
- Transmit up to 3000' line-of-sight with standard antennas, up to 5000' with included panel antenna array
- Each unit features a V-mount battery plate
- Transmitter input up to 4K via HDMI or 12G-SDI and transmits up to 4K60 video
- Receiver receives up to 4K60 video and outputs 4K via 12G-SDI and 4K via HDMI
- Supports HDR in 10-bit 4:2:2 color gamut
- Simultaneously transmit to up to six receivers
- AES-256 encryption support and RSA 1024 key pairing support
- Wireless iOS/Android app via Bluetooth
Teradek Ranger 4K Specs
Embedded Audio |
SDI: 2-Channel |
Encryption |
256-Bit AES |
Wireless
Wireless Range |
3000' / 914.4 m (Without Quality Loss) |
Frequency Range |
Non-DFS Frequencies |
RF Power |
17 dBm |
Format Support
Audio Format |
2-Channel 24-Bit 48 kHz PCM Audio |
Wireless Video Compression |
Uncompressed |
Timecode Support |
Yes |
Environmental
Operating Temperature |
32 to 104°F / 0 to 40°C |
Packaging Info
Package Weight |
23.65 lb |
Box Dimensions (LxWxH) |
23.6 x 20.2 x 9.4" |
