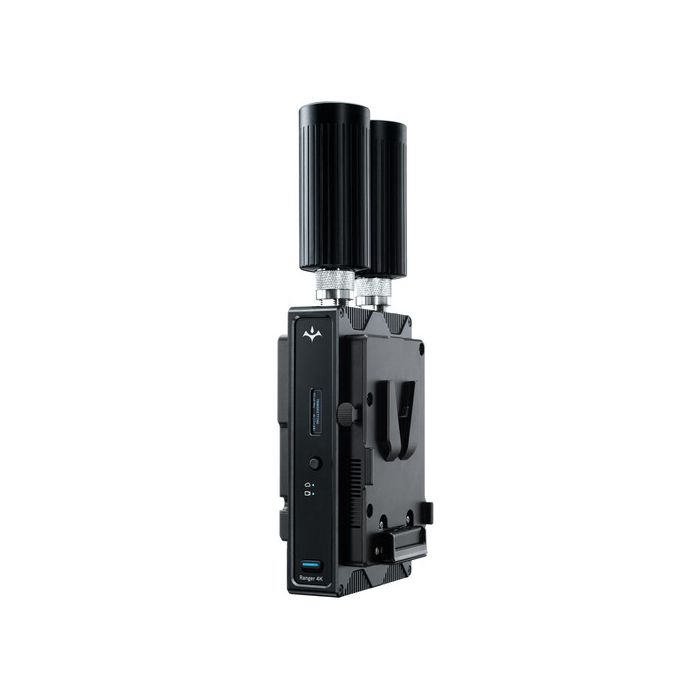

Teradek Ranger 4K 12G-SDI/HDMI - Wireless TX V-Mount
- 12G-SDI Input/Output; HDMI Input
- Uncompressed 4K60 HDR up to 5000'
- < 1ms Delay
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Teradek Ranger 4K Wireless Transmitter (V-Mount)
- USB Type-A to Type-B Cable (3')
- Ultra-Thin HDMI Type-A to Type-A Cable (18")
- 12G-SDI Cable (18")
- PSU 2-Pin to 30W AC Adapter (6')
- Antenna H N-Type Barrel
- Antenna V N-Type Barrel
The Teradek Ranger 4K Wireless Transmitter sends uncompressed 4K60 HDR video up to 5000' line of sight with only < 1ms delay. It features a wide operating range from 4.9 to 6.0 GHz and is designed to provide live productions with a combination of video quality and wireless integrity.
The Ranger 4K transmitter has a 12G-SDI (SMPTE 2082-1M) input and output, and an HDMI input, and it allows HDMI to SDI input cross-conversion.
Up to 3000' of wireless range or 5000' with included panel antenna
Uncompressed, 10-bit, 4:2:2 image quality
UNII-5 ready
40 / 20 MHz channel bandwidths
AES-256 encryption using RSA 1024 key exchange protocol
Manual and automatic frequency selection
Broadcast-capable: transmit to unlimited receivers simultaneously
Multicast-capable: up to 6 receivers
RANGER 4K TX |
|
|
|
|
|
|
|
AUDIO |
|
|
|
Audio Compression |
48kHz 24-bit PCM |
Audio Input |
Embedded SDI/HDMI Audio Input (2 channel) |
Audio Output |
N/A |
PHYSICAL ATTRIBUTES |
|
Dimensions |
5.9” x 3.6” x 1.2” (149 x 91 x 30mm) |
Weight |
19.1oz (544g) |
Construction |
Milled aluminium (chassis), regulation-compliant PCB |
Configuration Interface |
OSD Screen with Menu Joystick Navigation |
Switches |
On/Off Switch |
Desktop App |
Launchpad application for OSX & Windows |
Mobile App |
Launchpad app (iOS and Android) configuration via Bluetooth |
USB Interface |
Upgrade via Micro-USB |
Bluetooth |
Bluetooth 5 LE |
WIRELESS |
|
Wireless Non-DFS Frequencies |
5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz |
DFS Frequencies |
5.270 ~ 5.670 GHz |
Licensed Frequencies |
4.9 ~ 5.1GHz and 5.85 ~ 6.0 GHz |
RF Channel Selection |
Auto, Manual (Manual available for non-DFS, DFS and |
Licensed Frequencies) |
|
Encryption |
AES-256, RSA-1024 key exchange |
RF power |
21 dBm |
Antennas |
1x Horizontal N-Type 2dbi antenna |
antenna |
|
Range |
Up to 5000 ft line of sight (using Panel Antenna) |
Multicast |
Can connect one transmitter to up to 6 receivers |
Noise Rejection |
Can coexist with WiFi and 5GHz cordless phones |
POWER |
|
Power Input |
2-Pin Circular locking connector 7-28 VDC |
Battery |
Gold or V mount battery plate |
Nominal Power Consumption |
19 Watts |
Operating Temperature |
0~40 deg-C |
GENERAL |
|
Mountability |
Multiple mounting options with M3, 3/8” and 1/4-20” holes |
