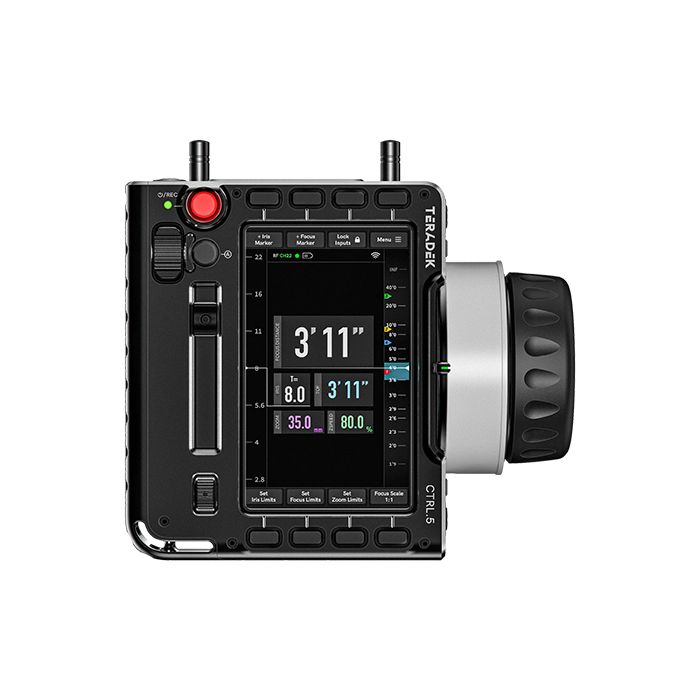

Teradek RT - CTRL.5

CTRL.5 raises the bar for wireless FIZ lens-control handsets with a 5-inch SmallHD Ultra-bright touchscreen powered by CTRL.OS, a task-specific evolution of SmallHD’s PageOS. View critical lens data overlays while pulling focus without taking your eyes off the video feed. Calibrate lenses to pre-marked focus rings and access configurations at any time via the touchscreen or one of eleven programmable function buttons. The hand unit includes a multitude of mounting points for accessories. CTRL.5 is fully cross-compatible across the Teradek RT Lens Control Ecosystem.

Teradek RT + CTRL.5 - Lens Control Reimagined

The RT System, an infinitely-customizable wireless lens-control platform, now features CTRL.5 with CTRL.OS, an evolution of SmallHD’s award-winning PageOS software. Pull focus, view critical lens data overlays, calibrate lenses to pre-marked focus rings, access real-time data from multiple on-set devices, and more.

Long Range

Interference-resistance
FHSS 2.4GHz wireless

Zero-Delay

1:1 Communication
between handset and motor

Daisy Chain Motors

Cleaner builds with
thinner cables

Third-party integration

FocusBug, CineTape,
MoonFocus

Flexible. Powerful. Endless Possibilities. - Meet CTRL.5 + CTRL.OS

CTRL.5 finally brings a page-based operating system to a hand unit. Like SmallHD’s PageOS, CTRL.OS is built for focus pullers, camera technicians, and DITs. Customize control functions and data visibility via touchscreen and 11 programmable function buttons. Add unlimited digital marks, and instantly view focus and iris scale, rangefinder information, depth of field, and more.

• Enhanced Information Visibility
  A high-readability display for clearer text and brighter images, delivering faster recognition of key data when you need it most.
• Customizable Interface
  Personalize your setup and streamline your workflow with 11 programmable tactile buttons and intuitive touchscreen UI.
• Unlimited Focus Marks
  Quickly edit, adjust, and delete digital focus marks on the fly.
• Enhanced Lens Mapping
  Create and store your lens library.
• Automated Workflows
  Automatically calculates depth of field, hyperfocal distance, and more, saving time on set.

Personalize Your Set Up - Accessorize It Your Way

Hand Grips

The three-piece lightweight Bocote wood Hand Grip Kit consists of a Palm Grip to hand-balance the unit, a Thumb Grip for traction, and a Ring Guard to secure the tightening knob.

Monitor Mount

The low-profile, bolt-on monitor hinge cube keeps the monitor close to the handset. A hinged rosette with removable anti-twist pins ensures a stable connection and the ability to mount additional accessories to the cube.

Lightweight Kickstand

Supports your CTRL.5 at a 90º or 45º angle on a flat surface. Mounts to the top or bottom of the handset to provide additional ⅜”-16 and ¼”-20 mounting points.

Colored Silicone Knob Grips

Color code to your camera or personalize your controller with color knob grips. The grips feature finger grooves around the cap which maximize comfort.

Precision Features and Integrations

Get all the tools that make you bulletproof on set without compromising quality or performance. Our evolving features and third-party integrations are developed from meticulous engineering and extensive user feedback.

SmallHD Lens Data Overlays

Teradek’s reputation for innovation and collaboration allows us to build beyond our own ecosystem of products. Teradek RT, when paired with SmallHD monitors, can now display an intuitive, unobtrusive overlay of zero-latency lens data, including focus, iris, and zoom marks. Keep
your eyes on the shot without looking down at the hand unit to check marks.

• Zero-latency
• On-screen focus markers
• Pinch-to-zoom focus scale
• Integration with TOF.1 Rangefinder
• Axis limits
