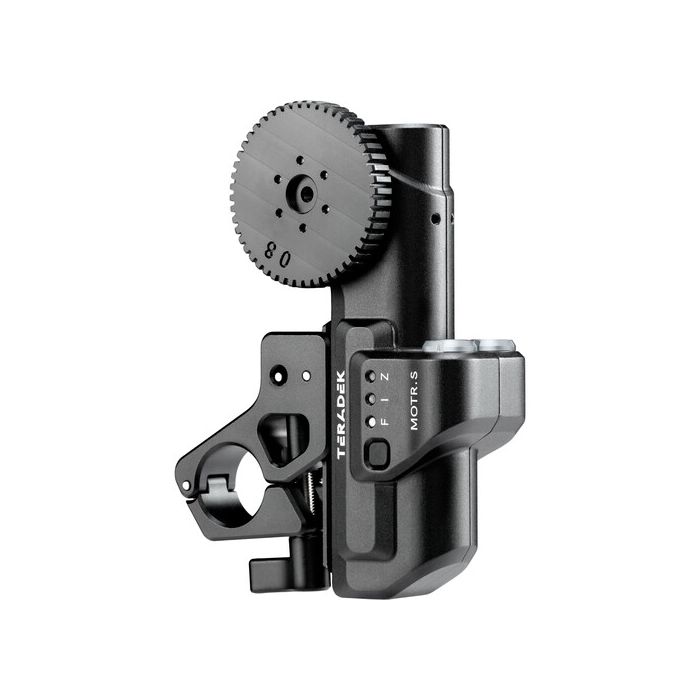

Teradek RT MOTR.S
by Teradek
Dostupnost:
Isporuka 7-10 dana
SKU
TRD-15-0050
Compact Lens-Control Motor
Includes 0.8 MOD Lens Gear
2.132,25 €
1.705,80 €
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Teradek RT MOTR.S Lens Motor
- 0.8 MOD Gear
- MOTR.S Bracket
esigned to improve upon previous models, the Teradek RT MOTR.S Lens Motor is an ultra-compact, lightweight, and speedy lens control unit capable of adjusting focus, iris, or zoom functions. The motor has a maximum torque of 0.95nm and a maximum speed of 297 teeth per second. Balanced cable management ensures your 0B 4-pin connections redirect cables and prevent them from getting in the way of your camera configuration.
An improved rod clamp is compatible with both 15 and 19mm rods. One 0.8 MOD lens gear is included and separately available gears can expand lens compatibility. The MOTR.S can be daisy-chained to suit your needs. The motor supports an operating voltage up to 32V.
MOTR.S Upgrades
- More compact and lightweight form factor
- Redesigned aluminum chassis, reinforced sockets, next gen circuit boards
- New 15/19mm rod clamp with better located handle
- 0.95nm maximum torque, 297 teeth per second
| General | |
| Gear Pitch | 0.8 MOD |
| Maximum Torque | 0.95 nm (Peak) |
|
0.3 nm (continuous)
|
|
| Maximum Speed |
297 teeth per second
|
| Connectors | 2 x 0B 4-Pin |
| Power | |
| Power Source | Plug-In Power |
| DC Input Power | 7 to 32 VDC |
| Operating Current | 1 A (Standby) |
| 2 A (Maximum) | |
| Environmental | |
| Operating Temperature |
32 to 82°F / 0 to 50°C
|
| Physical | |
| Mounting |
1x 15mm Rod Clamp
|
|
1x 19mm Rod Clamp
|
|
| Color | Black |
| Material of Construction | Aluminum |
| Dimensions |
4.2 x 2.2 x 1.2" / 106 x 56 x 31 mm
|
| Weight | 6.5 oz / 184 g |
