DZOFilm Catta Bundles_18-35/35-80 T2.9-PL/EF Mount(Black)

by DZOFilm
Raspoloživost: Isporuka 14-20 dana
SKU
DZO-FFCattaA1-BUNDLE
  • Catta Ace 18-35mm PL-Mount Zoom Lens
  • Catta Ace 35-80mm PL-Mount Zoom Lens
  • EF-Mount Bayonet Kit
7.678,75 €/57.855,54kn 6.143,00 €/46.284,43kn
Tečaj konverzije: 1 EUR = 7,53450 HRK

Sadržaj pakiranja

  • DZOFilm Catta Ace FF 18-35mm T2.9 Cine Zoom Lens (PL/EF, Black)
    • EF Mount Bayonet
    • Front Cap
    • Rear Cap
    • Shim Set
    • Support Base
    • Support Rod
    • Sticker Set
  • DZOFilm Catta Ace 35-80mm T2.9 Cine Zoom Lens (PL/EF, Black)
    • Front Cap
    • PL Rear Cap
    • EF Bayonet
    • EF Rear Cap
    • Shim Set
    • Support Base
    • Support Rod
    • Sticker Set
  • 2 x DZOFilm EF-Mount Tool Kit for Vespid, Catta Ace, Gnosis Lenses
    • EF Bayonet
    • EF Port Cap
    • Shim Set
    • Screwdriver

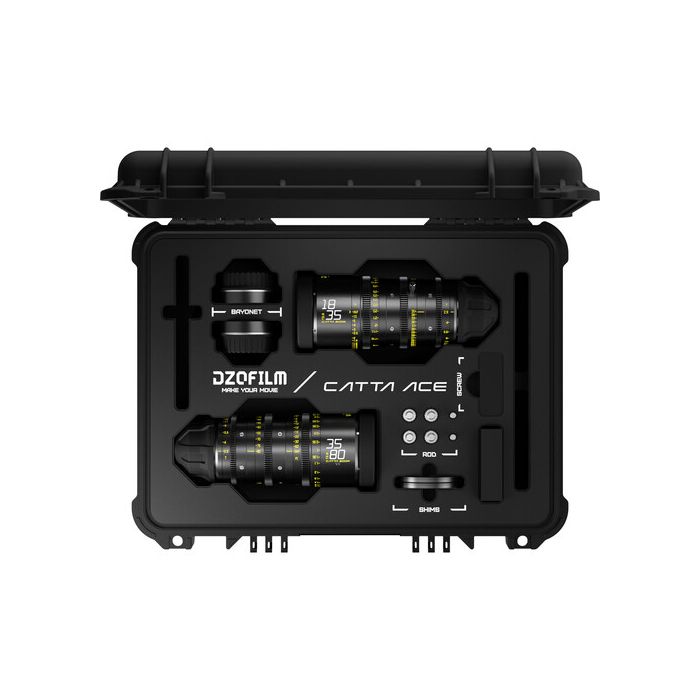

  • DZOFilm Hard Case for Catta 3-Lens Set
    • Custom-Cut Interior Foam

Add two full-frame zoom lenses to your production kit to cover multiple focal lengths and cameras with this Catta Ace FF 18-35/35-80mm T2.9 Cine 2-Lens Bundle from DZOFilm. The kit includes a black Catta Ace PL-mount 18-35mm T2.9 zoom lens, a black Catta Ace PL-mount 35-80mm T2.9 zoom lens, two EF-mount bayonet kits, two front lens caps, two rear caps, two shim sets, two support bases, and two support rods. A hard-shell case with custom-cut foam is also included to store and transport the lenses.

Read more below about the items in this kit.

DZOFilm Catta Ace FF 18-35mm T2.9 Cine Zoom Lens (PL/EF, Black)

Add a cinema zoom lens to your documentary, broadcast, or online production kit with this black Catta Ace FF 18-35mm T2.9 Cine Zoom Lens from DZOFilm. The cine lens is designed to maintain focus as you smoothly zoom in or out, and the Catta full-frame line reproduces accurate color and features a smooth focus/defocus transition. It features a wide T2.9 to T22 aperture, a 16-blade iris for a smooth bokeh, and a long 20.1" close focus range.

True to its cine design, it has a focus rotation of 270°, a 100° zoom rotation range, and a 77° iris rotation range. The lens features a PL mount, and it can be easily interchanged with an optional E mount and the included EF mount bayonet. Multiple accessories are included with the lens, including front and rear lens caps, a shim set, a support base, and a support rod.

Key Features

  • Maintains focus throughout 18 to 35mm zoom range
  • Minimal breathing
  • 16-blade iris with a soft bokeh
  • T2.9 to T22 aperture; 1.9x magnification ratio
  • 270° focus rotation; 100° zoom rotation; 77° iris rotation
  • 20.1" minimum focus distance
  • 80mm front diameter, 75mm filter size
  • 0.8 MOD gears



DZOFilm Catta Ace 35-80mm T2.9 Cine Zoom Lens (PL/EF, Black)

Add a cinema zoom lens to your documentary, broadcast, or online production kit with this white Catta Ace 35-80mm T2.9 Cine Zoom Lens from DZOFilm. The cine lens is designed to maintain focus as you smoothly zoom in or out. The Catta line reproduces accurate color and features a smooth focus/defocus transition. It features a wide T2.9 to T22 aperture, a 16-blade iris for a smooth bokeh, and a long 29.1" close focus range.

True to its cine design, it has a focus rotation of 240°, a 100° zoom rotation range, and a 75° iris rotation range. The lens features a PL mount, and an EF mount bayonet is included to change out with the included screws and shim kit. Multiple accessories are included with the lens, including front and rear lens caps, a shim set, a support base, and a support rod.

Key Features

  • Maintains focus throughout 35 to 80mm zoom range
  • Minimal breathing
  • 16-blade iris with a soft bokeh
  • T2.9 to T22 aperture; 2.3x magnification ratio
  • 240° focus rotation; 100° zoom rotation; 75° iris rotation
  • 29.1" minimum focus distance
  • 80mm front diameter
  • 0.8 MOD gears



DZOFilm EF-Mount Tool Kit for Vespid, Catta Ace, Gnosis Lenses

Add an EF mount to your Vespid, Vespid Cyber, Catta Ace, or Gnosis lens with this EF-Mount Tool Kit from DZOFilm. The tool kit includes everything you need to add the EF mount and includes a bayonet, an EF port cap, a shim set, and a screwdriver.

Compatibility

Vespid, Vespid Cyber, Catta Ace, and Gnosis cine lenses



DZOFilm Hard Case for Catta 3-Lens Set

The Hard Case from DZOFilm is a hard-shell case that fits up to three Catta series lenses. This case interior features a laser-cut foam insert that cradles and protects each lens.

Equipment Accommodated

Up to three Catta FF and/or Catta Ace FF zoom lenses



Custom Foam

Laser-cut foam interior cradles each lens

DZOFilm Catta Ace FF 18-35mm T2.9 Cine Zoom Lens (PL/EF, Black) Specs

Focal Length

18 to 35mm

Lens Mount

ARRI PL

Lens Format Coverage

Full Frame

Image Circle

43.5 mm

Maximum Aperture

T2.9

Minimum Aperture

T22

Minimum Focus Distance

From Unspecified Point in Lens: 20.08" / 0.51 m

Optical Design

20 Elements in 14 Groups

Diaphragm Blades

16

Gear MOD & Pitch

Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch

Front Diameter

80 mm

Filter Thread

77 mm

Focus Scales

Imperial

Focus Rotation

270°

Iris Rotation

77°

Zoom Rotation

100°

Zoom Ratio

1.9x

Electronic Communication

No

Image Stabilization

No

Dimensions (W x H)

7.1 x 3.1" / 179.5 x 80 mm

Length

7.1" / 179.5 mm

Weight

4.1 lb / 1850 g

DZOFilm Catta Ace 35-80mm T2.9 Cine Zoom Lens (PL/EF, Black) Specs

Focal Length

35 to 80mm

Lens Mount

ARRI PL

Lens Format Coverage

Full Frame

Image Circle

43.5 mm

Maximum Aperture

T2.9

Minimum Aperture

T22

Minimum Focus Distance

From Unspecified Point in Lens: 29.5" / 75 cm

Optical Design

20 Elements in 15 Groups

Diaphragm Blades

16

Gear MOD & Pitch

Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch

Front Diameter

80 mm

Filter Thread

77 mm

Focus Scales

Imperial

Focus Rotation

240°

Iris Rotation

75°

Zoom Rotation

100°

Zoom Ratio

2.3x

Electronic Communication

No

Image Stabilization

No

Weight

3.4 lb / 1532 g

Packaging Info

Package Weight

12.885 lb

Box Dimensions (LxWxH)

17.9 x 16.9 x 8.8"

DZOFilm EF-Mount Tool Kit For Vespid, Catta Ace, Gnosis Lenses Specs

Lens Compatibility

DZOFilm
Vespid
CATTA

Camera Mount

Canon EF

Electronic Communication

No

Included Shims

Yes

Packaging Info

Package Weight

0.43 lb

Box Dimensions (LxWxH)

6.1 x 5.75 x 1.95"

DZOFilm Hard Case For Catta 3-Lens Set Specs

Carry/Transport Options

Handle

Type of Closure

Latch

Interior Type

Precut Foam
