by RED
Raspoloživost: Isporuka 14-20 dana

35.4MP 8K Super35 CMOS Sensor
Interchangeable PL Mount Included
Up to 8K120, 7K140 & 4K240 in 17:9 S35
Integrated Electronic ND Filters
16.5+ Stops Dynamic Range
Integrated V-Mount Battery Plate

43.000,00 €/323.983,50kn 34.400,00 €/259.186,80kn
Tečaj konverzije: 1 EUR = 7,53450 HRK

Sadržaj pakiranja

  • V-RAPTOR XL 8K S35 (V-Lock)
  • V-RAPTOR XL PL Mount
  • PL-Mount Shim Pack
  • AC Power Adapter (270W)
  • 3-Pin XLR to 4-Pin LEMO Power Cable (10')
  • RED Logo Sticker

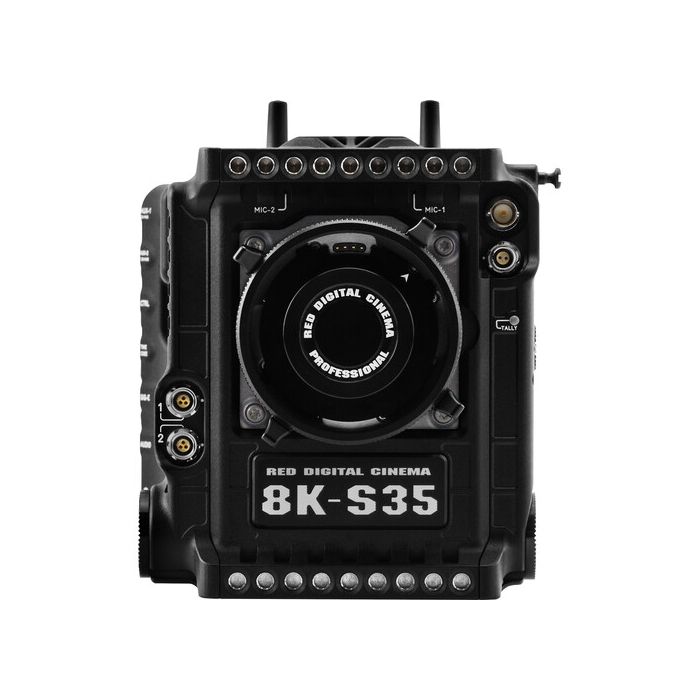

The V-mount V-RAPTOR XL 8K S35 Camera from RED DIGITAL CINEMA offers up to 8K multiformat video capture, REDCODE Raw, Apple ProRes, and proxy recording, and 1080p live preview streaming in a streamlined form featuring an array of interfaces suitable for high-end crew use. This S35 version of the V-RAPTOR incorporates an interchangeable ARRI PL lens mount, internal ND filters, GbE (Gigabit Ethernet), and a built-in Ambient Lockit timecode/genlock unit.

The combination of Super35 capture, lens mount versatility, and the all-in-one DSMC3 form enables the V-RAPTOR XL 8K S35 to fit seamlessly into your wildlife and broadcast projects or other shoots involving lots of handheld work and multiple locations. Its industry-standard interface incorporates three 12G/6G/3G-SDI outputs, both 12 and 24V power outputs, timecode and genlock ports, and an integrated V-mount battery plate.

35.4MP CMOS S35 Sensor

The V-RAPTOR XL 8K S35's Super35mm 35.4 MP CMOS sensor provides a practical alternative to full-frame capture that is particularly suitable for in-the-field productions while still offering the high resolution and shallow depth of field beloved by cine-style shooters.
16.5+ stops of dynamic range give the V-RAPTOR 8K XL S35 the ability to capture stunning images in any environment you explore.

Interchangeable Lens Mount/Autofocus Options

Includes an ARRI PL lens mount which can be swapped for a separately available Canon EF mount, enabling you to make use of a large variety of lenses.
Offers on-sensor enhanced phase-detect autofocus and in-camera AI processing for select EF lenses with face detection and object tracking coming in future updates.


The streamlined form, interchangeable lens mounts, and the classic Super35 look makes the V-RAPTOR XL 8K S35 ideal for wildlife, broadcast, and cine-style productions.

Built-In Pro Interfaces

Designed for professional crew use with integrated auxiliary power and mounting points for attaching multiple high-end camera accessories.
Built-in Ambient Lockit mode for wireless genlock and timecode syncing.
Multiple video outputs, including 12G/6G/3G-SDI.

Internal ND Filters

Motorized clear and 2 to 7-stop electronic ND filters with 1/3, 1/4, and 1-stop increments provide precision exposure control.
The internal NDs are easily controlled via the side push buttons or wirelessly using the iOS/Android RED Control app.

Side Control Panel

Conveniently located on the assistant's side, an easy-to-navigate, 2.4" LCD panel provides comprehensive control, including status updates, in-camera format selection, and customizable buttons.
The V-RAPTOR XL 8K S35's compact and durable DSMC3 form features micro-V battery compatibility, several monitor options, CFexpress card capture, and a modular design that, when paired with a compact Super35 lens, creates a portable, ergonomic form.

Streamlined Form with Dual-Voltage Battery Support

The built-in interfaces and integrated OLED display lend the V-RAPTOR XL 8K S35 camera rig a streamlined, accessible form.
An integrated V-mount battery plate supports 24 to 34V batteries with multiple auxiliary power outputs and standard 12 to 16V batteries.

Advanced Cooling

The V-RAPTOR XL 8K S35's advanced cooling system uses dedicated fans to separately reduce the temperature of auxiliary power components and camera components while a heat exchanger maintains a precise sensor temperature.
Together, these cooling functions reduce noise while recording, create a more robust system, and produce less black shading.

RED Control App

Use the iOS and Android-compatible RED Control or RED Control Pro app for remote or tethered camera access.
Access is available via Wi-Fi and the USB-C and Ethernet interfaces.

Lens Mount ARRI PL
Lens Communication Yes, Cooke /i
Sensor Resolution Effective: 35.4 Megapixel (8192 x 4320)
Sensor Type 26.21 x 13.82 mm (Super35) CMOS
Image Stabilization None
Built-In ND Filter Mechanical Filter Wheel with Clear ND Filters and a 2 to 7 Stop Electronic ND Filter
Internal Filter Holder No
Capture Type Stills & Video
Exposure Control
Shutter Type Electronic Rolling Shutter
Advertised Dynamic Range 16.5 Stops
Video Capture
Internal Recording Modes REDCODE HQ
  8192 x 4320 up to 60.00 fps
  6144 x 3240 up to 96 fps
  4096 x 2160 up to 240 fps
  2048 x 1080 up to 480 fps
  8192 x 4320 up to 60.00 fps
  6144 x 3240 up to 160 fps
  4096 x 2160 up to 240 fps
  2048 x 1080 up to 480 fps
  8192 x 4320 up to 120 fps
  6144 x 3240 up to 160 fps
  4096 x 2160 up to 240 fps
  2048 x 1080 up to 480 fps
  8192 x 4320 up to 120 fps
  7168 x 3780 up to 140 fps
  6144 x 3240 up to 160 fps
  5120 x 2700 up to 192 fps
  4096 x 2160 up to 240 fps
  3072 x 1620 up to 320 fps
  2048 x 1080 up to 480 fps
External Recording Modes None
Sensor Crop While Recording 8K (8192 x 4320) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
  8K (8192 x 4320) in 1.25:1 / 1.3:1 / 1.5:1 / 1.6:1 / 1.8:1 / 2:1 When Recording in Raw / Anamorphic
  7K (7168 x 3780) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
  7K (7168 x 3780) in 1.6:1 / 1.8:1 / 2:1 When Recording in Raw / Anamorphic
  6K (6144 x 3240) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
  6K (6144 x 3240) in 1.25:1 / 1.3:1 / 1.5:1 When Recording in Raw / Anamorphic
  5K (5120 x 2700) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
  4K (4096 x 2160) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
  3K (3072 x 2160) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
  2K (2048 x 1080) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
Fast-/Slow-Motion Support Yes
Gamma Curve RED IPP2
Built-In Microphone Type Mono
Audio Recording 2-Channel 24-Bit 48 kHz
IP Streaming None
Media/Memory Card Slot Single Slot: CFexpress Type B (CFast 2.0)
Video I/O 3 x BNC (12G-SDI) Output
  1 x BNC (3G-SDI) Monitor Output
Audio I/O 1 x LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input
  1 x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O 1 x XLR 4-Pin (19.5 to 34VDC) Input
  2 x D-Tap Output
  3 x LEMO 2-Pin Output
  2 x Fischer 3-Pin Output
Other I/O 1 x USB-C Control/Data/Video
  1 x 9-Pin (Gigabit Ethernet) Control/Data Input/Output
  1 x LEMO 4-Pin (RS-232) Control
Wireless 2.4 / 5 GHz Wi-Fi Control
Mobile App Compatible Yes: Android & iOS
  App Name: RED Control, RED Control Pro
  Functionality: Remote Control, View Live Feed
Global Positioning (GPS, GLONASS, etc.) None
Size 2.4"
Display Type Fixed LCD
Type Optional, Not Included
Focus Type Manual Focus Only
Focus Mode Automatic, Continuous-Servo AF, Manual Focus, Single-Servo AF
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 122°F / -20 to 50°C
Storage Humidity 0 to 85%
Battery Type V-Mount
Tripod Mounting Thread 3 x 1/4"-20 Female (Bottom)
  3 x 3/8"-16 Female (Bottom)
Accessory Mount 16 x 1/4"-20 Female
Material of Construction Aluminum
Weight 7.99 lb / 3.62 kg
