Sachtler aktiv10T

Dostupnost: Isporuka 14-20 dana
SKU
S2072T
  • 5 lb Capacity Fluid Head
  • 100mm Half Ball
  • SpeedSwap Clamp-Style Base
2.867,50 € 2.294,00 €

Sadržaj pakiranja

  • Sachtler aktiv10T Touch & Go Fluid Head with SpeedLevel & 7-Step Drag (100mm)
  • Sachtler Pan Handle DV 75
  • Sachtler 0364 Touch & Go Quick Release Plate
  • Sachtler aktiv Bowl Connector V2 (100mm)
  • CR2032 Battery

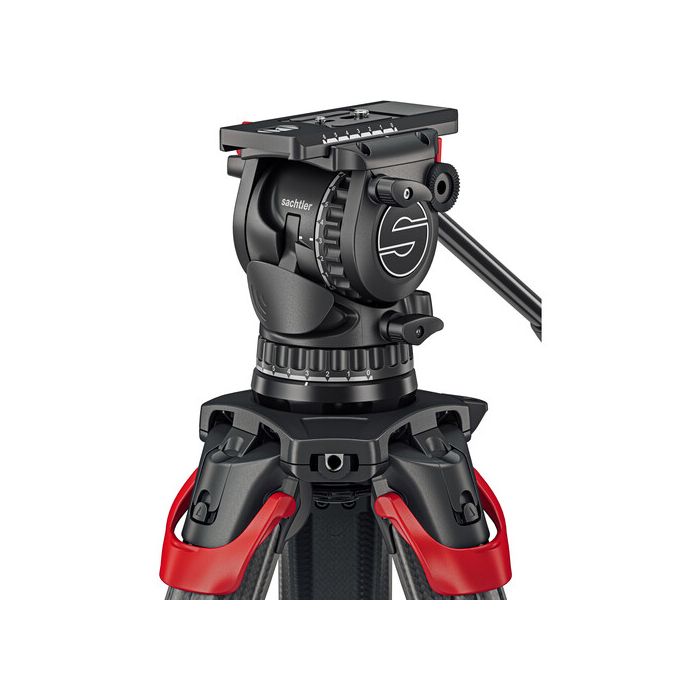

Enjoy creating smooth pans and tilts while being able to quickly move your video head from tripod to tripod with the Sachtler aktiv10T Touch & Go Fluid Head with SpeedLevel & 7-Step Drag. Take advantage of the innovative SpeedLevel technology to provide almost instant mounting and leveling of your camera rig on almost any Sachtler 100mm bowl tripod. The clamp and stud SpeedLevel system saves precious time leveling your camera rig by eliminating the need to screw on a tie-down knob. Designed for larger DSLRs, mirrorless, and digital cine-style cameras, the aktiv10T supports rigs weighing 0 to 26.5 lb. This fluid head features 15 steps of counterbalance and seven steps of pan and tilt drag adjustment, plus zero settings for both balance and drag.

The SpeedLevel technology replaces the traditional head screw and tie-down design with a strong clamp built into the head bowl and a stud component that clamps onto your tripod bowl or other mounting platforms, such as a slider. Simply grasp the large lever on the head and pull it up to release the clamp, then press it down to lock your head in place. Partially lifting the lever allows you to quickly and easily level the head. The integrated PrismBubble level system is pressed once to illuminate the bubble level or twice to light up both the bubble level and the drag settings, a boon when working in darker environments. The bubble level also has a built-in prism, enabling you to easily level the head when the legs are set at a maximum height or an awkward angle.

Compatibility

The aktiv10T fluid head is compatible with all Sachtler 100mm bowl base tripod legs, except for the HotPod

Features

SpeedLevel Technology

Use the large integrated lever to quickly mount, level, and lock the head on your tripod or other base; lift up to release, lift partially to level, and press down to lock the head firmly in place

SpeedSwap Base

Centered around a metal stud, the SpeedSwap base clamps onto almost any Sachtler 100mm bowl tripod or to the separately available slider base; additional bases can be purchased separately to fit a second tripod, dolly, or slider

PrismBubble Level

The illuminated PrismBubble is visible from any height or angle, saving you time when leveling at higher or lower positions

26.5 lb Capacity Fluid Head

This 26.5 lb capacity fluid head is suited for larger DSLRs, mirrorless MFT cameras, and pro-style digital cine cameras

Stepped Counterbalance and Drag

15 steps of counterbalance and seven steps of pan and drag plus zero settings for free spins and tilts

Touch & Go Plate

The Touch & Go platform provides quick camera mounting with 2.4" of travel for balancing your rig, and both 1/4"-20 and 3/8"-16 camera screws

Sachtler Aktiv Series Video Head Specs

Camera Plate

Camera Plate Features

Quick Release, Sliding Balance Plate

Camera Plate Type

Touch & Go Plate S

Camera Mounting Screw

1 x 1/4"-20 Male
1 x 3/8"-16 Male

Safety Lock

Yes

Tripod Platform

Camera Platform Adjustment

Yes, (2.4" / 61.0 mm)

Base Mount

100 mm Half Ball

Pan & Tilt

Drag Control

Pan: Stepped 7-Step Plus 0
Tilt: Stepped 7-Step Plus 0

Drag Type

Fluid

Vertical Tilt

+90° to -70°

Panning Range

360°

Independent Pan Lock

Yes

Independent Tilt Lock

Yes

Physical

Load Capacity

0 to 26.5 lb / 0 to 12 kg

Counter Balance

Incremental 15-Step Plus 0

Pan Handle Fittings

2 x Rosette

Included Pan Handle Length

16.77" / 42.6 cm

Bubble Level

1 x Illuminated

Operating Temperature

-40 to 140°F / -40 to 60°C

Weight

6.6 lb / 3 kg

Packaging Info

Package Weight

9.53 lb

Box Dimensions (LxWxH)

18 x 9.9 x 7.3"
