Sennheiser EW-D AB (Q)
by SennheiserWorks with EW-D ASA Antenna Splitter
For Long Antenna Cable Runs
+12 dB Boost
BNC Connectors
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Sennheiser EW-D AB Inline Antenna Booster for EW-D Wireless Systems (Q: 470 - 550 MHz)
- BNC Cable

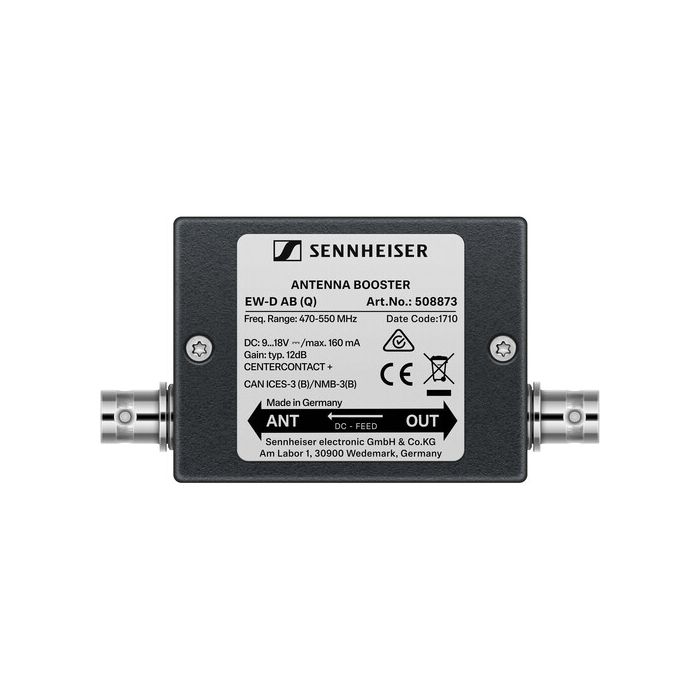

The Sennheiser EW-D AB Inline Antenna Booster is a high-quality, frequency-selective antenna booster that gets inserted between a remote antenna and an EW-D ASA antenna splitter. It delivers a 12 dB boost to compensate for RF signal loss when running long coaxial antenna cables, helping to significantly improve the wireless performance of your EW-D series receiver.
The frequency selectivity of the EW-D AB ensures that all RF signals within the specified Q: 470 to 550 MHz frequency range are amplified while RF signals with frequencies outside of the specified range are attenuated.
The EW-D AB receives DC power from the EW-D ASA antenna splitter. A DC pass-through capability enables you to connect up to two EW-D AB per antenna cable line (DC-coupled). A green LED indicates that the unit is receiving sufficient DC power.
Frequency Range | Q: 470 - 550 MHz |
IIP3 | >25 dBm |
Maximum RF Input Power | 10 dBm |
Gain | 12 dB (Typical) |
Connections | 2 x BNC Female, DC Feed from OUT to ANT |
Impedance | 50 Ohms |
Power Supply | Receives DC Power from EW-D ASA Antenna Splitter: 12 VDC (9 to 18 VDC) / Max 160 mA at 12 V, Center Contact + |
Relative Humidity | 5 to 95% |
Temperature | Operating Temperature Range: 14 to 131°F / -10 to 55°C
Storage Temperature Range: -4 to 158°F / -20 to 70°C |
Dimensions | 3.7 x 1.9 x 0.8" / 95 x 47 x 21 mm |
Weight | 4.2 oz / 120 g |
Package Weight | 0.425 lb |
Box Dimensions (LxWxH) | 4.9 x 3.5 x 1.2" |
