Tilta Camera Cage for Sony FX9 Basic Kit (Without Battery Plate)

by Tilta
Raspoloživost: Isporuka 14-20 dana
SKU
T-ES-T18-B
  • VCT-U14 Baseplate with Shoulder Pad
  • Top, Front & Rear 15mm Rod Ports
  • 7.9" 15mm Rods & 1.8" EVF Rods Included
  • Rosette Mounts for Extensions & Grips
829,52€/6.250,00 kn 663,61€/5.000,00 kn
Tečaj konverzije: 1 EUR = 7,53450 HRK

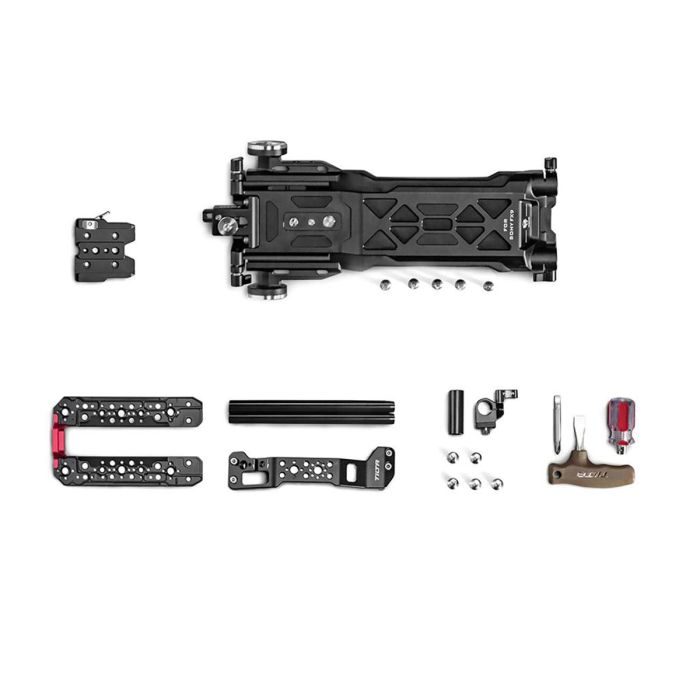

Sadržaj pakiranja

Tilta Camera Cage for Sony PXW-FX9 (No Battery Plate)
VCT-U14 Baseplate
2 x 15mm Rod (7.9")
Multifunctional Extended Side Arm
Multifunctional Extended Top Plate
EVF 15mm Rod Adapter with Two 1.8" Rods
Lightweight Dovetail Plate (10")

The Tilta Camera Cage for Sony PXW-FX9 is a modular system with a VCT-U14 baseplate with a shoulder pad. The cage features a built-in lens adapter support bracket and top, front, and rear 15mm rod ports. For mounting, it offers 1/4"-20 and 3/8"-16 accessory and tripod mount threads, 1/4"-20 and 3/8"-16 ARRI-style anti-twist threads, and ARRI-style rosettes for extension arms and handgrips.

VCT-U14 Baseplate with Shoulder Pad
The VCT-U14 baseplate features an ergonomic shoulder pad and a 15mm LWS rod mount on the front and back. Two 7.9" rods are included for attaching accessories such as a follow focus. Standard ARRI-style rosettes on the sides of the baseplate allow you to install extension arms or additional handgrips, and an integrated, adjustable lens support on the front provides support for longer, heavier lenses. The baseplate also features a quick release plate on the bottom that provides 1/4"-20 and 3/8"-16 tripod mount threads, and this plate is interchangeable with select other Tilta quick release plates.


Top and Side Plates
The top plate attaches to the top of the camera without interfering with the camera's original top handle. It features a 15mm rod clamp on top for mounting an EVF and accessories to included 1.8" short 15mm rods. The side plate connects the top plate with the baseplate, and both the top and side plates offer multiple 1/4"-20 and 3/8"-16 ARRI-style anti-twist threads to incorporate additional accessories.

Tilta ES-T18-B Specs
Support Type
Baseplate, Cage, Rod Support System, Shoulder Support
Grip Type None
Mounting

Rod Standard 15 mm LWS / 60 mm Spacing
Included Rods 2 x 7.9" / 20 cm 15 mm Rod
2 x 1.8" / 4.5 cm 15 mm Rod
Battery Plate Type None
Accessory Mounting Side Plate, Side: Multiple x 1/4"-20 Thread, Multiple x 3/8"-16 Thread
Top Plate, Top: Multiple x 1/4"-20 Thread, Multiple x 3/8"-16 Thread
Tripod Mounting Quick Release Plate: 1/4"-20 Thread, 3/8"-16 Thread
Rod Ports Top Plate, Top: 2 x 15 mm Rod Port
  Baseplate, Front: 2 x 15 mm Rod Port
  Baseplate, Rear: 2 x 15 mm Rod Port
Shoe Mounting None
Rosettes Baseplate, Sides: 2 x ARRI Rosette w/ M6 Thread
General
Construction Aluminum, Steel
Dimensions Not Specified by Manufacturer
Weight Not Specified by Manufacturer
