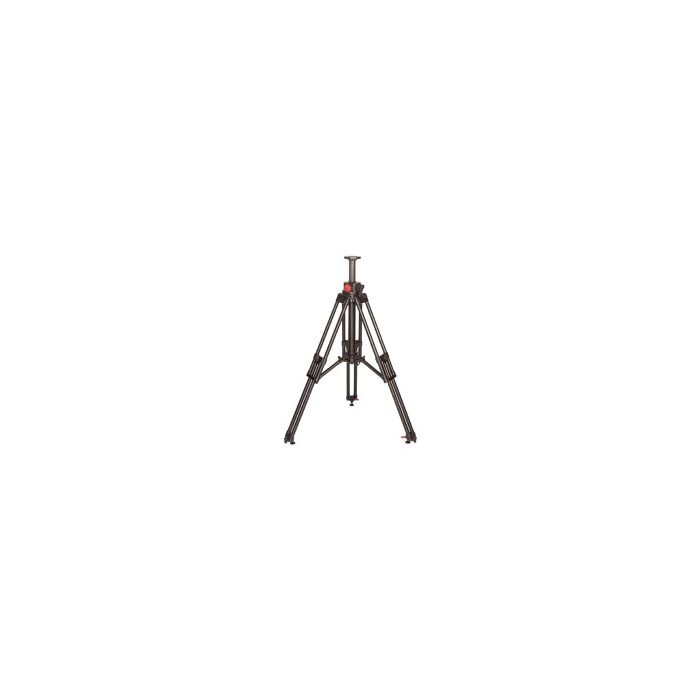

Vinten Elevation Unit HDT-1

by Vinten
Dostupnost: Isporuka 14-20 dana
SKU
3370-3

This Vinten Elevation Unit for HDT-1 Tripod is designed for use with the Vinten HDT-1 heavy-duty tripod. The elevation unit attaches directly to the tripod.

5.083,50 € 4.066,80 €

Sadržaj pakiranja

Vinten Elevation Unit for HDT-1 Tripod
Limited 1-Year Warranty

This Vinten Elevation Unit for HDT-1 Tripod is designed for use with the Vinten HDT-1 heavy-duty tripod. The elevation unit attaches directly to the tripod.

A geared handle and an on-shot clamp provide a height range of 18". The unit supports a maximum payload of 250 lb.

The pan/tilt head is attached to the elevation unit with a four-bolt fixing as standard, with Mitchell, Quickfix, and 100/150 mm bowl adapters optional.

Maximum height with the HDT-1 tripod and floor spreader is 71.3".

Minimum height with the HDT-1 tripod and floor spreader is 28.1". This is not for use with a two-stage tripod due to reduced stability when the elevation unit is fully extended.

For HDT-1 tripod
Load capacity of 250 lb
Height range of 18"

Weight Capacity: 250 lb / 113 kg
Travel Distance: 18" / 45.7 cm
Weight 11 lb / 5 kg
