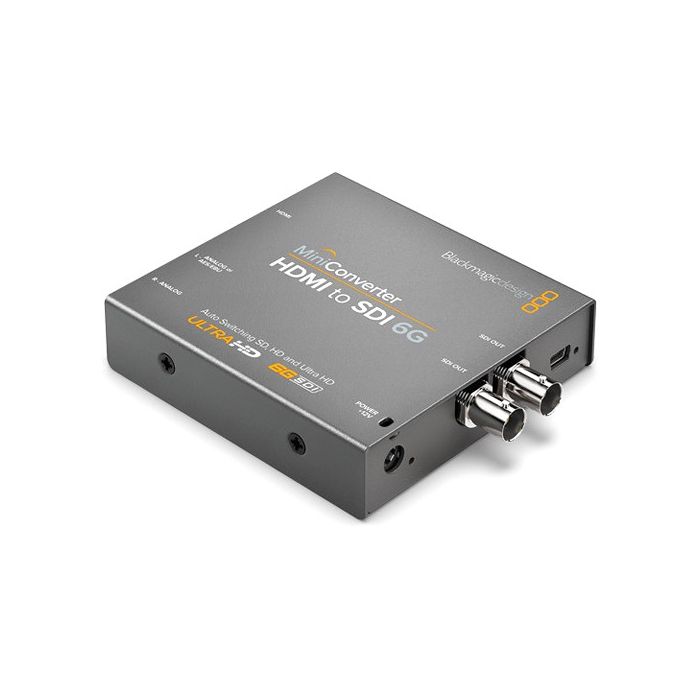

Blackmagic Design Mini Converter - HDMI to SDI 6G

Raspoloživost: Dostupno
SKU
CONVMBHS24K6G

4K HDMI Input, 2 x 6G-SDI Outputs, Supports SD, HD, UHD 4K & DCI 4K Signals, Automatic Input Signal Detection, 24-Bit, 48 kHz Audio, Analog & AES-EBU Digital Audio Inputs

Normalna cijena 1.425,00 kn Posebna cijena 1.353,75 kn 1.083,00 kn

Sadržaj pakiranja

  • 1 x Blackmagic Design Mini Converter - HDMI to SDI 6G
  • 1 x 12V Power Supply with International Socket Adapters

The Blackmagic Design Mini Converter - HDMI to SDI 6G converts HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 60p. This is useful for connecting consumer devices that output HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. The two 6G-SDI outputs also support SD and HD-SDI signals for integration into existing workflows. Both 6G-SDI outputs send duplicate signals. Audio is embedded in the SDI output from either the HDMI input or from the two 1/4" input jacks which support 4 channels of AES/EBU digital audio or 2 channels of analog audio.

The Mini Converter's settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design's website. The USB port also enables the firmware to be updated.
The device is powered by an included 12V power supply and includes international socket adapters.
Additional Features
  • 4:2:2 Sampling and color precision
  • HD scaler and SD down conversion
  • 24-bit, 48 kHz audio sampling
  • Compliant with SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A or Level B, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601 standards
Video Input 1 x HDMI, Type A
Video Output 2 x 6G-SDI
Multi-Rate Support Auto detection of SD, HD, 3G, or 6G-SDI signals
Reclocking Yes
Audio Input Analog: 2 channels with 1 x 1/4" (6.3 mm) jack per channel
AES/EBU: 4 channels with 1 x 1/4" jack (6.3 mm)
Format Support DCI 4K
24p

UHD 4K
3840x2160p: 30/29.97/25/24/23.98

HD
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

SD:
NTSC: 525i/59.94
PAL: 625i/50
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A or Level B, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601
SDI Video Rates Switchable between SD, HD, Ultra HD and DCI 4K
SDI Video Sampling 4:2:2
SDI Color Precision 4:2:2
SDI Color Space YUV
SDI Audio Sampling 24-bit, 48 kHz
SDI Auto Switching Automatically detects SD, HD, or 6G-SDI
HDMI Format Support UHD 4K
3840x2160p: 30/29.97/25/24/23.98

HD
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

SD:
NTSC: 525i/59.94
PAL: 625i/50
HDMI Color Space YUV and RGB
HDMI Color Precision 4:2:2
4:4:4
HDCP Compliance No. HDMI input is unable to capture from copy-protected HDMI sources
Format Conversion HD down conversion
Settings Control Mini switches or USB software
Firmware Upgradeable Via USB
Power Supply 12 VDC
Power Consumption 4.44 W
Operational Voltage Range 12 to 31 VDC
Operating Temperature 32 to 104°F / 0 to 40 °C
Storage Temperature -4 to 113°F / -20 to 45 °C
Relative Humidity 0 to 90% non-condensing
Dimensions 4.49 x 3.63 x 0.90" / 11.40 x 9.22 x 2.29 cm
Weight 8.6 oz / 243.8 g
